The MSG730A is a cost-effective multi-standard signal source module. It provides standard AM/FM/ΦM analog modulation functions as well as
pulse modulation, and I/Q modulation, and frequency/amplitude sweep. Besides, The SG1000 provides some option functions such as base-band signal generator, linear frequency modulation, special communication standard signal and frequency up convert function. The MSG730A features standard PXI size and light weight. In addition, to meet the demands of production secondary development, the MSG730A device with LAN and USB interfaces, and provides standard SCPI command. It is an ideal device for system integration.

Description

SPEC

Spectrum Analyzer

MSG730A Modular Signal Generator
The frequency range from 9kHz to 3GHz

MSG730A

The MSG730A is a cost-effective multi-standard signal source module. It provides standard AM/FM/ΦM analog modulation functions as well as
pulse modulation, and I/Q modulation, and frequency/amplitude sweep. Besides, The SG1000 provides some option functions such as base-band signal generator, linear frequency modulation, special communication standard signal and frequency up convert function. The MSG730A features standard PXI size and light weight. In addition, to meet the demands of production secondary development, the MSG730A device with LAN and USB interfaces, and provides standard SCPI command. It is an ideal device for system integration.

Property

Value

Frequency Range

9KHz ∼ 3.0GHz

Setting range

9kHz-50kHz:-120dBm-0dBm
50kHz∼6.0GHz:-120dBm-+10dBm

SSB phase noise(@ 10KHz , f= 1GHz)

f=1GHz MSG730:≤-93dBc/Hz@10kHz

Display

/

Model Type

Portable

Power

AC

Dimensions

238mmx103mmx350mm

Features

Sweep modes: frequency sweep, amplitude sweep, and frequency+ amplitude sweep

Standard analog modulation:AM/FM/ФM

Pulse modulation with minimum pulse width of 100ns

Applications

Primarily utilized in the electronic communications industry and microwave electronic measurement sectors, it is also well-suited for educational and research purposes, product development, manufacturing, maintenance. and other related scenarios.

Datasheet

Characteristics

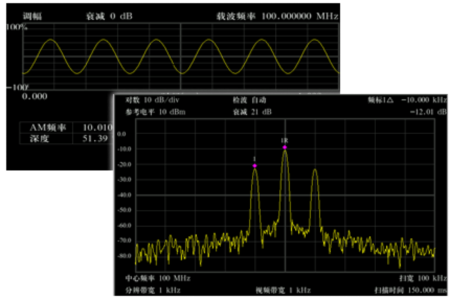

AM/FM/ФM,
Customizable modulation(SSB/DSB/CW)

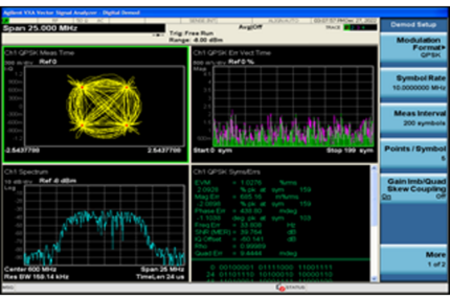

ASKFSK/PSK/OAM

built-in IQ modulator(Model-B)

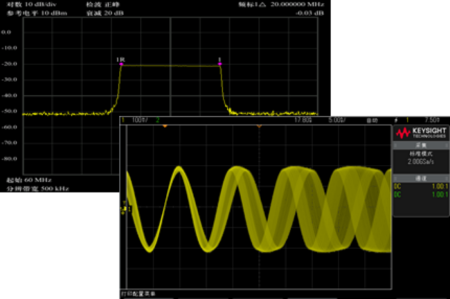

Linear frequency modulation can simultaneously retain thecharacteristics of continuous signals and pulses.

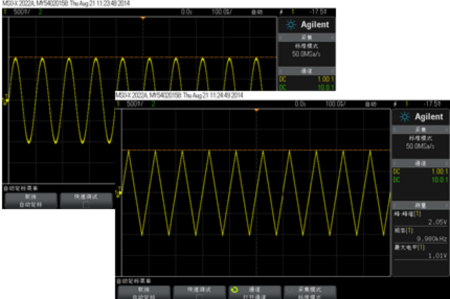

low-frequency output: sine waves, square waves, triangular waves,and sawtooth waves

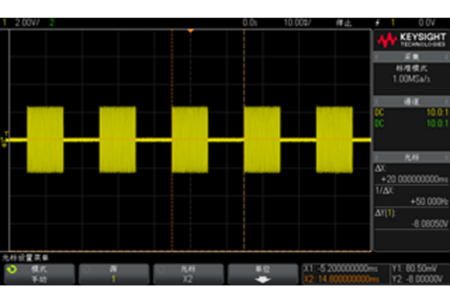

Pulse modulation with minimum pulse width of 100ns, supporting Internal/External pulse modulation input, External trigger input

Outputting signals at various frequencies and amplitudes.
Output dynamic range ofup to 130 dBm.

Input frequency range:190+30MHz,Output frequency range:201MHz~3 .0GHz

The signal generator is capable of generating sweep signals withequal steps, including three sweep modes: frequency sweep,amplitude sweep, and frequency + amplitude sweep.Sweep type:Step sweep,List sweep

Additional information

Frequency Range

9KHz ∼ 3.0GHz

Setting range

9kHz-50kHz:-120dBm-0dBm 50kHz∼6.0GHz:-120dBm-+10dBm

Display

/

Model Type

Portable

Power

AC

Dimensions

238mmx103mmx350mm
