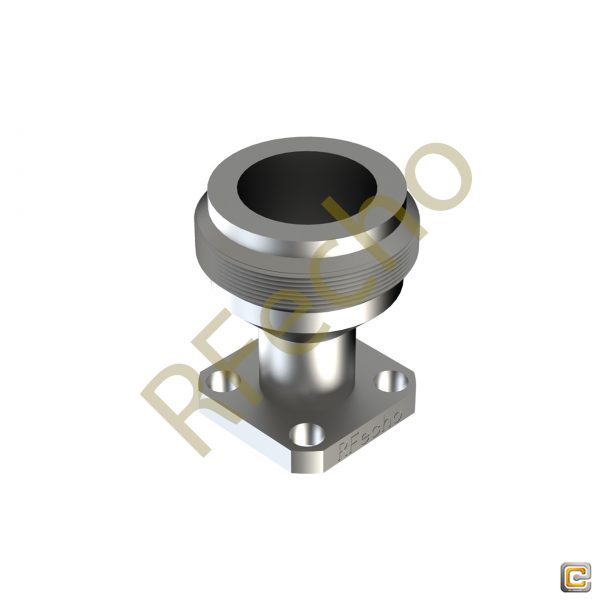

N 18 GHz, 0.015″ Accept Pin Diameter, 4 Hole .500″ Square Mounting Flange Female Connector

N 18 GHz, 0.015″ Accept Pin Diameter, 4 Hole .500″ Square Mounting Flange Female Connector

Model D340-P15-F01 is a Female connector. The N connectors are durable, operational temperature rating of -55°C to +165°C, lowest VSWR and RF leakage (≤ -100 dB). N Connector offers the frequency from DC to 18 GHz.

Mounting method in N Connectors is 4 Hole, where the flange size is .500″ Square. This model of N Connector provides the accept pin diameter of 0.015″ inches.

Description

SPEC

N Connector

N 18 GHz, 0.015″ Accept Pin Diameter, 4 Hole .500″ Square Mounting Flange Female Connector

D340-P15-F01

Model D340-P15-F01 is a Female connector. The N connectors are durable, operational temperature rating of -55°C to +165°C, lowest VSWR and RF leakage (≤ -100 dB). N Connector offers the frequency from DC to 18 GHz.

Mounting method in N Connectors is 4 Hole, where the flange size is .500″ Square. This model of N Connector provides the accept pin diameter of 0.015″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

18

Flange (inch)

.500″ Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.015″

Gender

Female

Features

Low VSWR

Free through 18 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

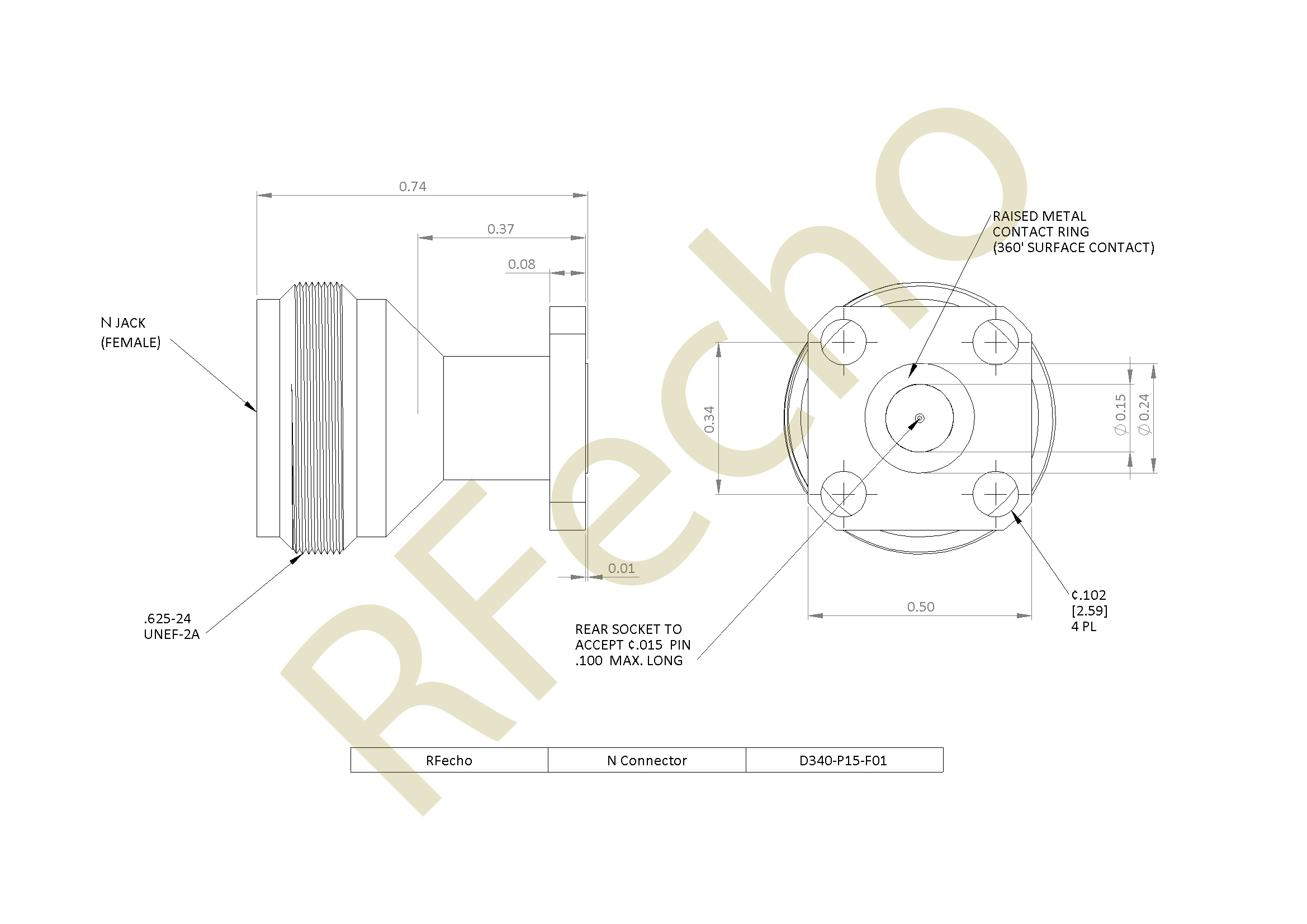

Outline

D340 P15 F01 outline N 18 GHz, 0.015″ Accept Pin Diameter, 4 Hole .500″ Square Mounting Flange Female Connector

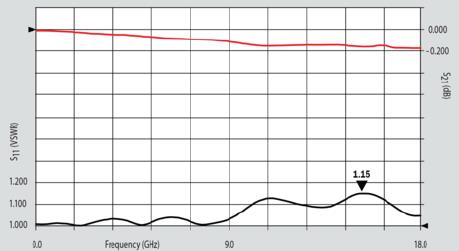

Plot

D340 P15 F01 plot1 N 18 GHz, 0.015″ Accept Pin Diameter, 4 Hole .500″ Square Mounting Flange Female Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

18

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
