N 18 GHz, 0.036″ Accept Pin Diameter, 4 Hole 1.000″ Square Mounting Flange Male Connector

N 18 GHz, 0.036″ Accept Pin Diameter, 4 Hole 1.000″ Square Mounting Flange Male Connector

Model D341-P36-F08 is a Male connector. The N connectors are durable, operational temperature rating of -55°C to +165°C, lowest VSWR and RF leakage (≤ -100 dB). N Connector offers the frequency from DC to 18 GHz.

Mounting method in N Connectors is 4 Hole, where the flange size is 1.000″ Square. This model of N Connector provides the accept pin diameter of 0.036″ inches.

Description

SPEC

N Connector

N 18 GHz, 0.036″ Accept Pin Diameter, 4 Hole 1.000″ Square Mounting Flange Male Connector

D341-P36-F08

Model D341-P36-F08 is a Male connector. The N connectors are durable, operational temperature rating of -55°C to +165°C, lowest VSWR and RF leakage (≤ -100 dB). N Connector offers the frequency from DC to 18 GHz.

Mounting method in N Connectors is 4 Hole, where the flange size is 1.000″ Square. This model of N Connector provides the accept pin diameter of 0.036″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

18

Flange (inch)

1.000″ Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.036″

Gender

Male

Features

Low VSWR

Free through 18 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

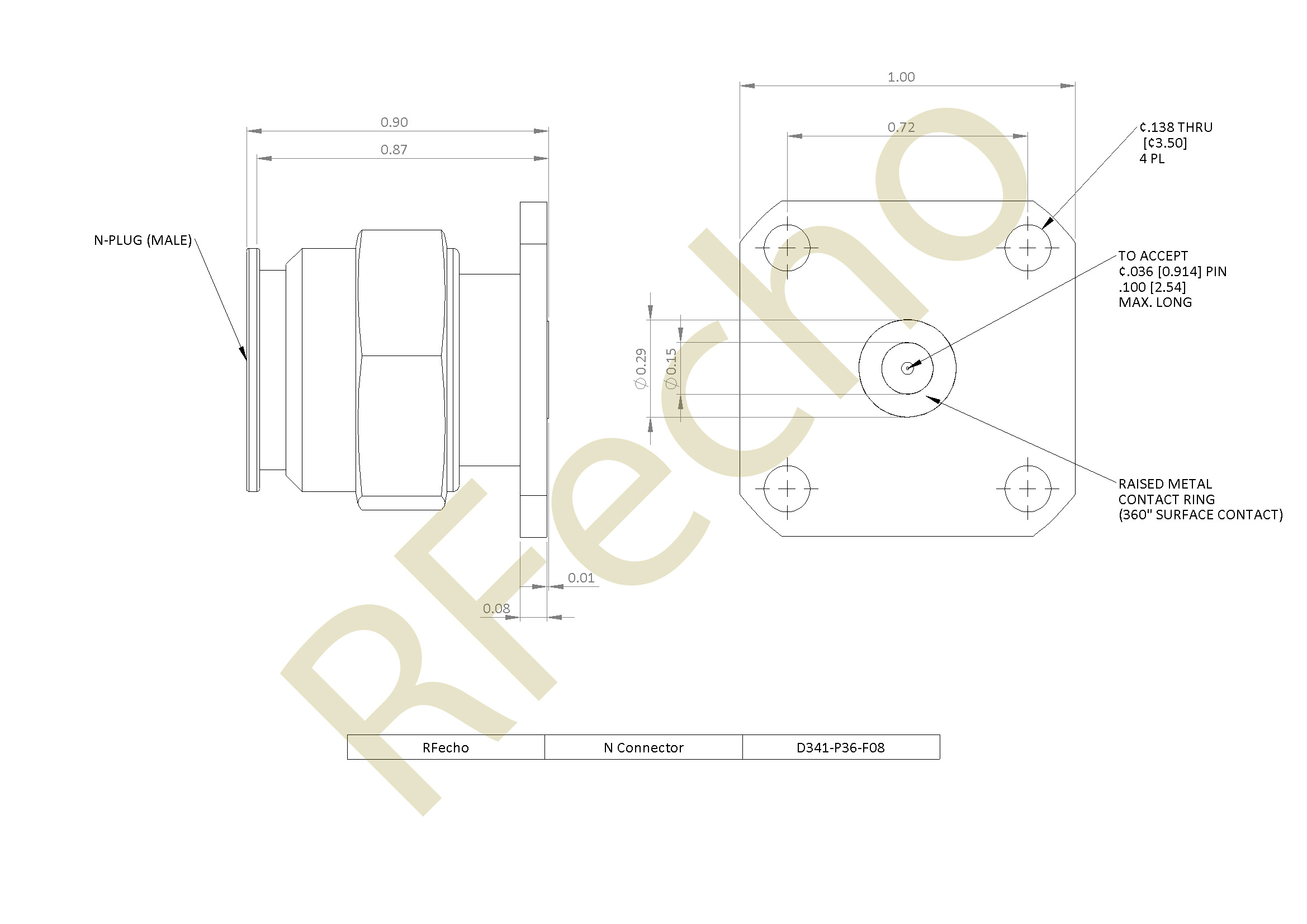

Outline

D341 P36 F08 outline N 18 GHz, 0.036″ Accept Pin Diameter, 4 Hole 1.000″ Square Mounting Flange Male Connector

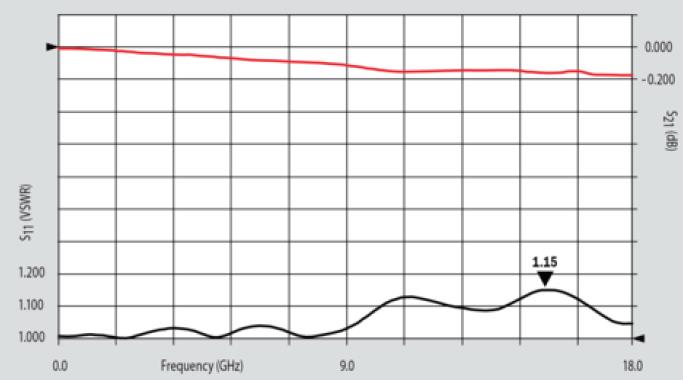

Plot

D341 P36 F08 plot1 N 18 GHz, 0.036″ Accept Pin Diameter, 4 Hole 1.000″ Square Mounting Flange Male Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

18

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
