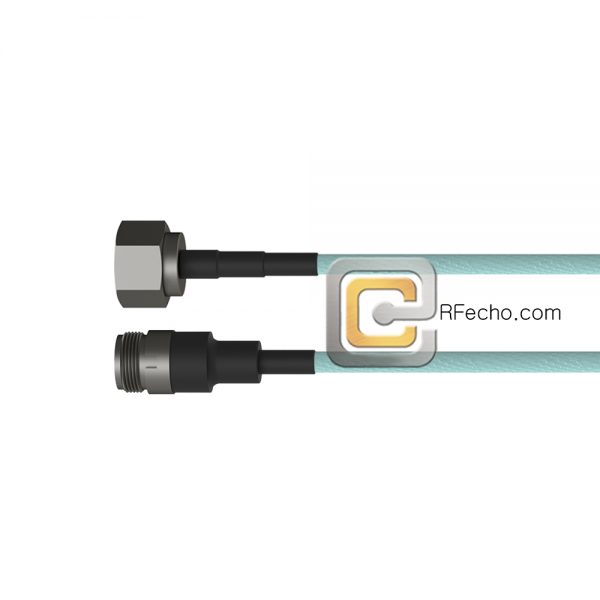

N Female to N Male, 18 GHz, OM-195TC Coax and RoHS

N Female to N Male, 18 GHz, OM-195TC Coax and RoHS

RFecho Phase Stable Test Cables allow customers to make accurate repeatable measurements due to the cables phase and amplitude stability when flexed.
The OM-195TC test cables use a solid PTFE dielectric core to help prevent any change in diameter under flexure resulting in good insertion loss and low VSWR These cables are designed to exceed 5,000 mating cycles when handled with proper care.
This series of cables are an excellent choice for the laboratory or production environment when a more precise measurement is needed, especially when there is movement involved in the testing cycle.

SKU: F017-290S0-291S0-180-N Categories: , ,

Description

PDF

Outline

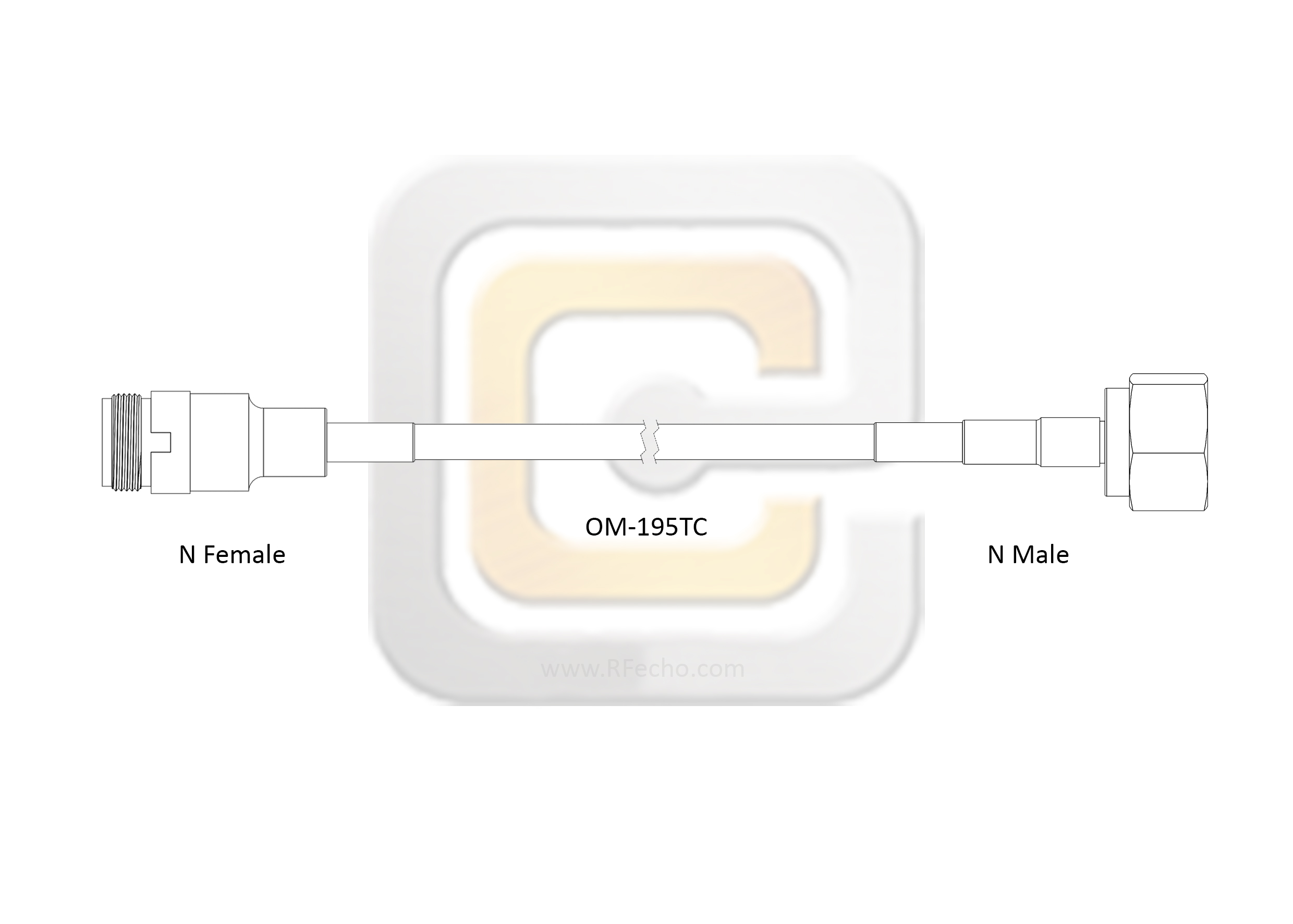

F017 290S0 291S0 180 N outline N Female to N Male, 18 GHz,  OM-195TC Coax and RoHS

Plot

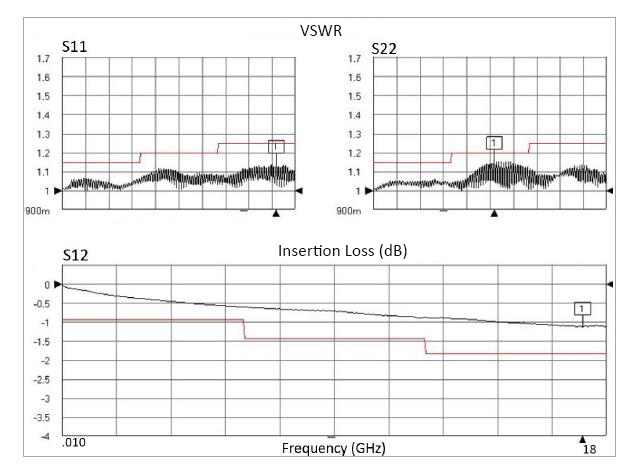

F017 290S0 291S0 180 N plot1 N Female to N Male, 18 GHz,  OM-195TC Coax and RoHS

Additional information

Cable Type

Cable Coax Type

Cable Armour

Connector 1

Connector 1 Gender

Connector 1 Body Style

Connector 1 Mounting Method

Connector 1 Connection Method

Connector 2

Connector 2 Gender

Connector 2 Body Style

Connector 2 Mounting Method

Connector 2 Connection Method
