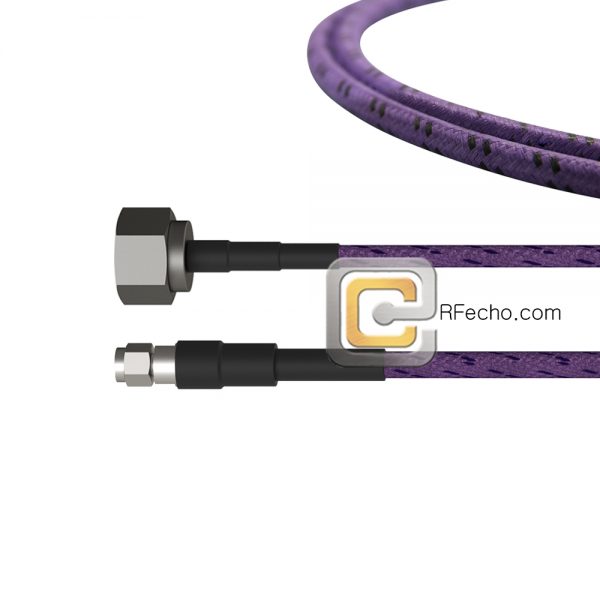

Flexible Testing — OM-195TC Armored RF Cable

om 160flex 2.92mm 2.92mm plain transparent wm.png Flexible Routing — OM-160FLEX RF Cable
om 141 n n plain transparent wm.png Value — OM-141 RF Cable
0 out of 5
( There are no reviews yet. )

$130.98 – $559.62

E-Testing ECO

N male to SMA male · 18 GHz

F017-291S0-321S0-180-C

SKU: F017-291S0-321S0-180-C Categories: E-Testing ECO, OM-195TC, RF Cables
Add to Wishlist

Description

Technical specifications

18 GHzMaximum frequency
OM-195TCFlexible coaxial cable
Ø 4.95 mmBase cable jacket diameter
End A
N male, straight
End B
SMA male, straight
Armour
Composite
Assembly insertion loss
Confirm for required length and frequency
Base cable jacket
FEP
Base cable construction
PTFE, solid silver-plated copper conductor, triple shield
One-time bend radius, base cable
25.40 mm

Cable details

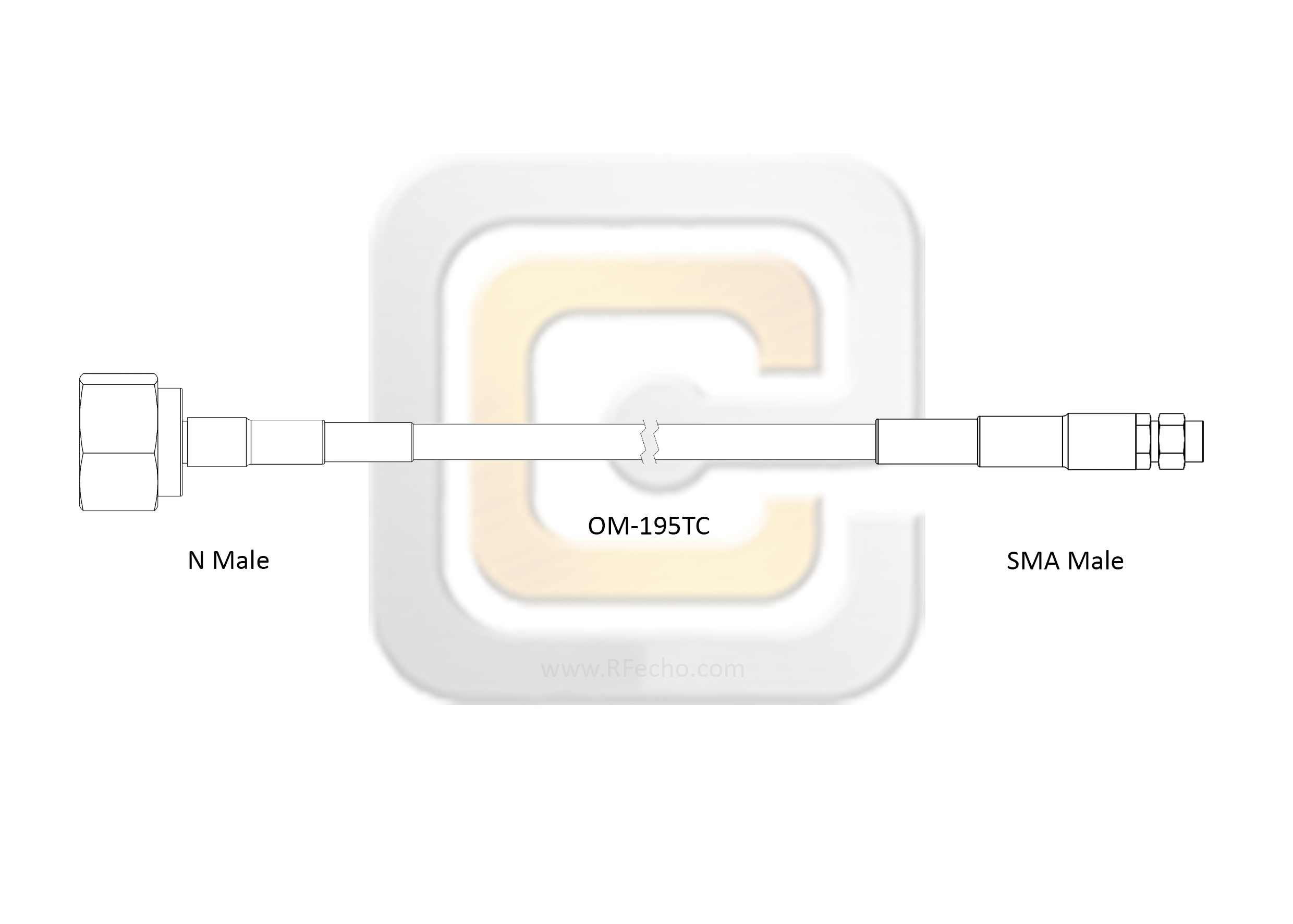

N male — OM-195TC — SMA male

OM-195TC armored cable routing
Cable routing · Cable family routing illustration.
N straight male connector close-up
N male · Straight connector.
SMA straight male connector close-up
SMA male · Straight connector.

Cable cutaway

OM-195TC construction cutaway
Illustrative cable construction. Layer thicknesses are schematic.

Loss versus frequency

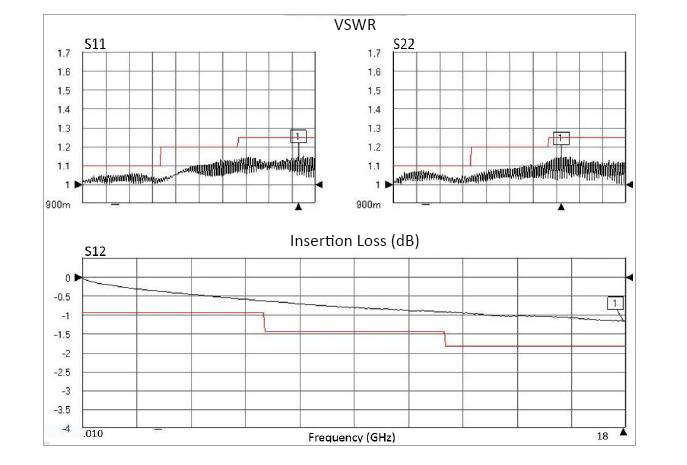

OM-195TC loss versus frequency
48 in reference assembly. This graph includes connector effects and is specific to the stated reference length and configuration.

Reviews

There are no reviews yet.

Be the first to review “Flexible Testing — OM-195TC Armored RF Cable”
