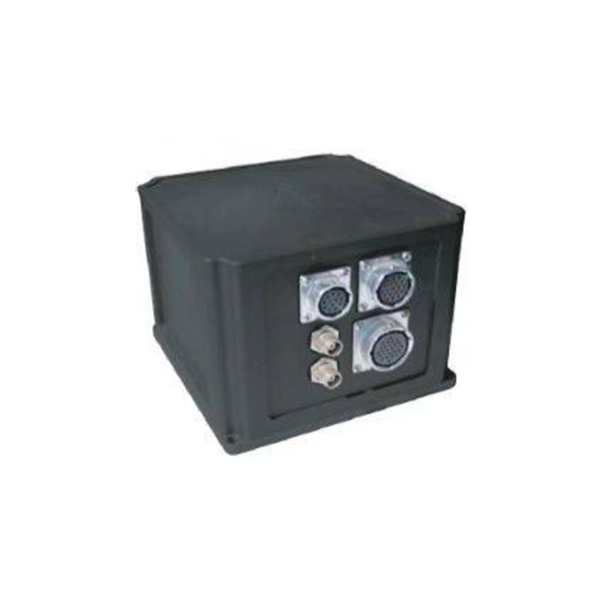

OC-300AL-DGI Fiber Optic Integrated Navigation System
Based on cost-effective closed-loop fiber optic gyroscopes (FOG), accelerometers, and high-end GNSS receiver boards
Multi-sensor fusion and navigation solution algorithms
Supports Integrated INS/GNSS and Pure Inertial navigation modes
Supports NovAtel IE post-processing software in integrated navigation mode
Supports static north-seeking in Pure Inertial mode
Provides short-term heading retention and meter-level positioning accuracy after GNSS signal loss
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The OC-300AL-DGI Fiber Optic Integrated Navigation System integrates cost-effective closed-loop fiber optic gyroscopes (FOG), accelerometers, and high-end GNSS receiver boards. Utilizing multi-sensor fusion and navigation solution algorithms, it meets the precise measurement requirements for attitude, heading, and positioning in applications such as medium-to-high precision mobile mapping systems and large-scale UAVs. The product features Integrated INS/GNSS and Pure Inertial navigation modes. In Integrated mode, it utilizes GNSS satellite positioning data to output pitch, roll, heading, position, velocity, and timing. Upon signal loss, it outputs inertial-derived position, velocity, and attitude data, maintaining high precision for pitch and roll, while providing short-term heading retention and meter-level positioning accuracy. In Integrated mode, it supports raw data output for NovAtel’s IE post-processing software. Pure Inertial mode (referring to operation without GNSS fusion since power-on; signal loss after fusion remains in Integrated mode) provides precise attitude measurements, outputting pitch, roll, and heading, and supports static north-seeking.
OC-300AL-DGI | |
| OC-300AL-DGI Fiber Optic Integrated Navigation System | |
Property | Value |
| Gyroscop (Technical Specifications) | 0.05° / √ hr |
| Heading Accuracy (RMS) (Function) | Gyro-compassing Accuracy (15 min alignment) |
| Heading Accuracy (RMS) (Technical Specifications) | 1° SecL |
| Attitude Accuracy (RMS) (Function) | Outage Hold Accuracy (30 min outage) |
| Attitude Accuracy (RMS) (Technical Specifications) | 0.5° |
| Positioning Accuracy (Function) | Outage Accuracy (CEP) |
| Positioning Accuracy (Technical Specifications) | 10m, 30s outag |
| Velocity Accuracy (RMS) (Technical Specifications) | 0.05m/s |
| Timing Accuracy (Technical Specifications) | 20ns |
| Gyroscop (Function) | Angular Random Walk |
| Size / Dimensions | 139 × 136.5 × 101 (mm) |
Features | |
| Based on cost-effective closed-loop fiber optic gyroscopes (FOG), accelerometers, and high-end GNSS receiver boards | |
| Multi-sensor fusion and navigation solution algorithms | |
| Supports Integrated INS/GNSS and Pure Inertial navigation modes | |
| Supports NovAtel IE post-processing software in integrated navigation mode | |
| Supports static north-seeking in Pure Inertial mode | |
| Provides short-term heading retention and meter-level positioning accuracy after GNSS signal loss | |
Applications | |
| Medium-to-high precision mobile mapping systems and large-scale UAVs | |
