OCT-T02 Solenoid Pin Puller – 28VDC, ≥2mm stroke
OCT-T02 Solenoid Pin Puller (pin puller / shotbolt actuator): 28VDC, ≥2mm stroke. Datasheet and quote from RFecho.
- Description
- Datasheet

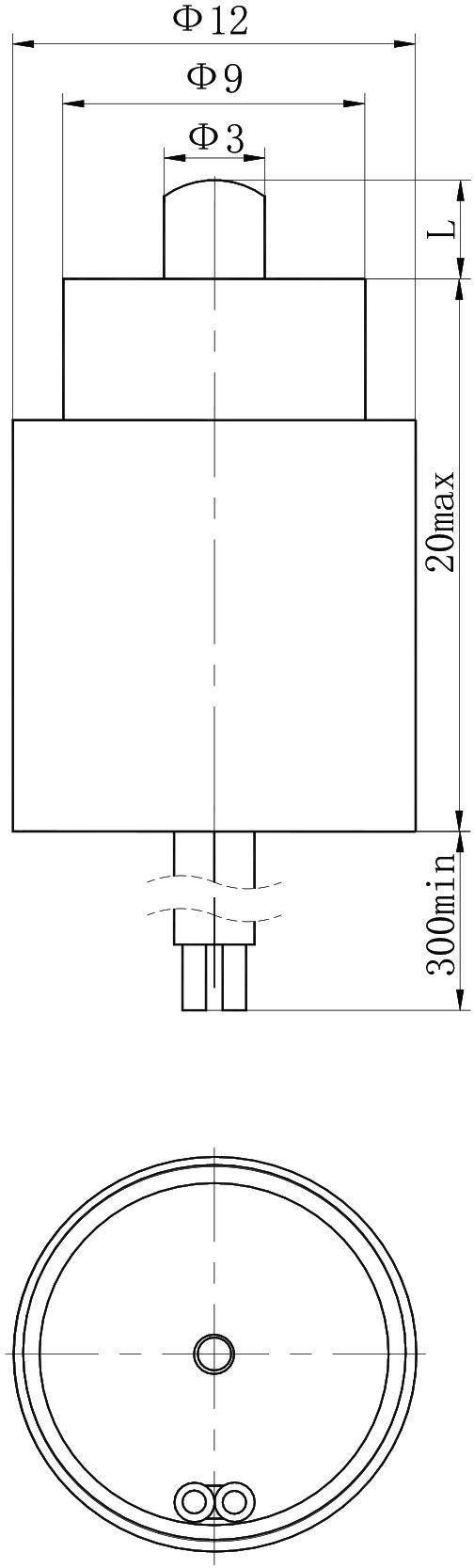

- Outline
- Reviews (0)
Description
The OCT-T02 is a solenoid pin puller, operating from 28Vd.c., over a ≥ 2mm stroke. It is rated for intermittent duty, resets by spring return. Its stated application is automatic control equipment.
Solenoid Pin Puller Specifications | |
| 28Vd.c. | |
| OCT-T02 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28 |
| Duty Type | Intermittent |
| Actuation Type | Pull type |
| Reset Type | Spring return |
| Coil Resistance (Ω) | 6× (1±10%) (25°C) |
| Armature Stroke (mm) | ≥ 2 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 1000 (standard atmospheric pressure) |
| Coil Power (W) | approx. 131 |
| Radial Pin-Pull Force (N) | ≥ 10 |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 85 |
Features | |
| Intermittent Duty | |
| Pull type Actuation | |
| Spring return | |
