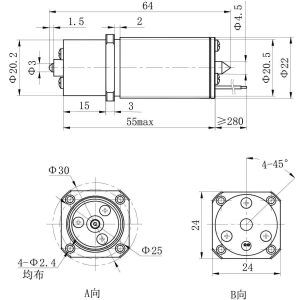

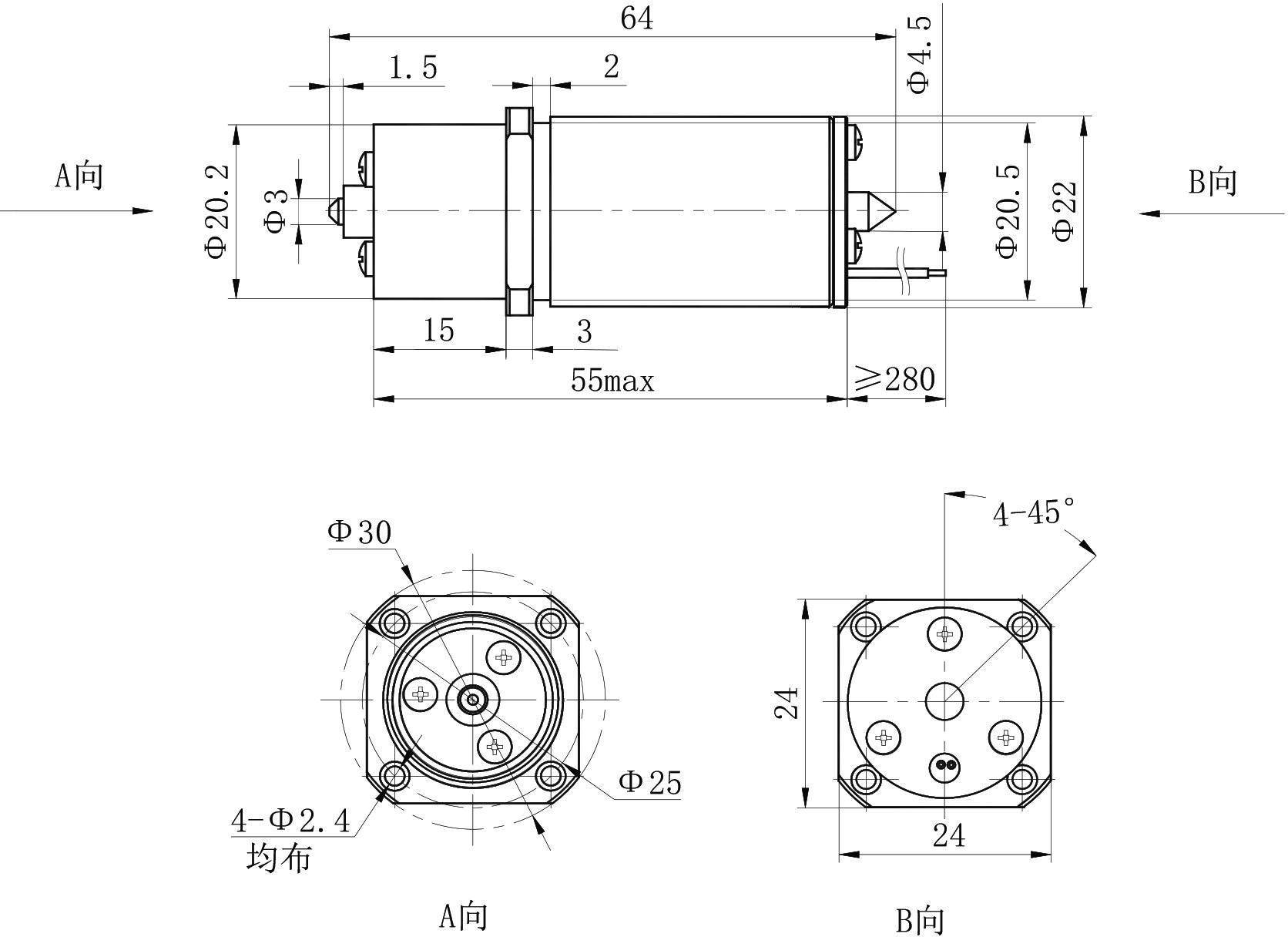

- Outline
- Reviews (0)
Description
The OJ20MZ002 is a solenoid, operating from 27+2 -9Vd.c., developing ≥ 10 N, over a ≥ 2mm stroke. It is rated for intermittent duty. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 27+2 -9Vd.c. | |
| OJ20MZ002 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 27+2 -9 |
| Duty Type | Intermittent |
| Actuation Type | Push type |
| Coil Resistance (Ω) | 19+3 -2 |
| Magnetic Force (N) | ≥ 10 |
| Armature Stroke (mm) | ≥ 2 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | approx. 38.4 |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 50 |
| Vibration (Hz) | 10Hz to 50Hz, amplitude 0.2mm; 50Hz to 120Hz, acceleration 19.6m/s 2 |
| Shock (g) | 50 |
Features | |
| Intermittent Duty | |
| Push type Actuation | |
