OJ35MZ003 DC Solenoid – 27VDC, ≥2kg, 3.2mm stroke
OJ35MZ003 DC Solenoid (pull solenoid / electromagnet): 27VDC, ≥2kg, 3.2mm stroke. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

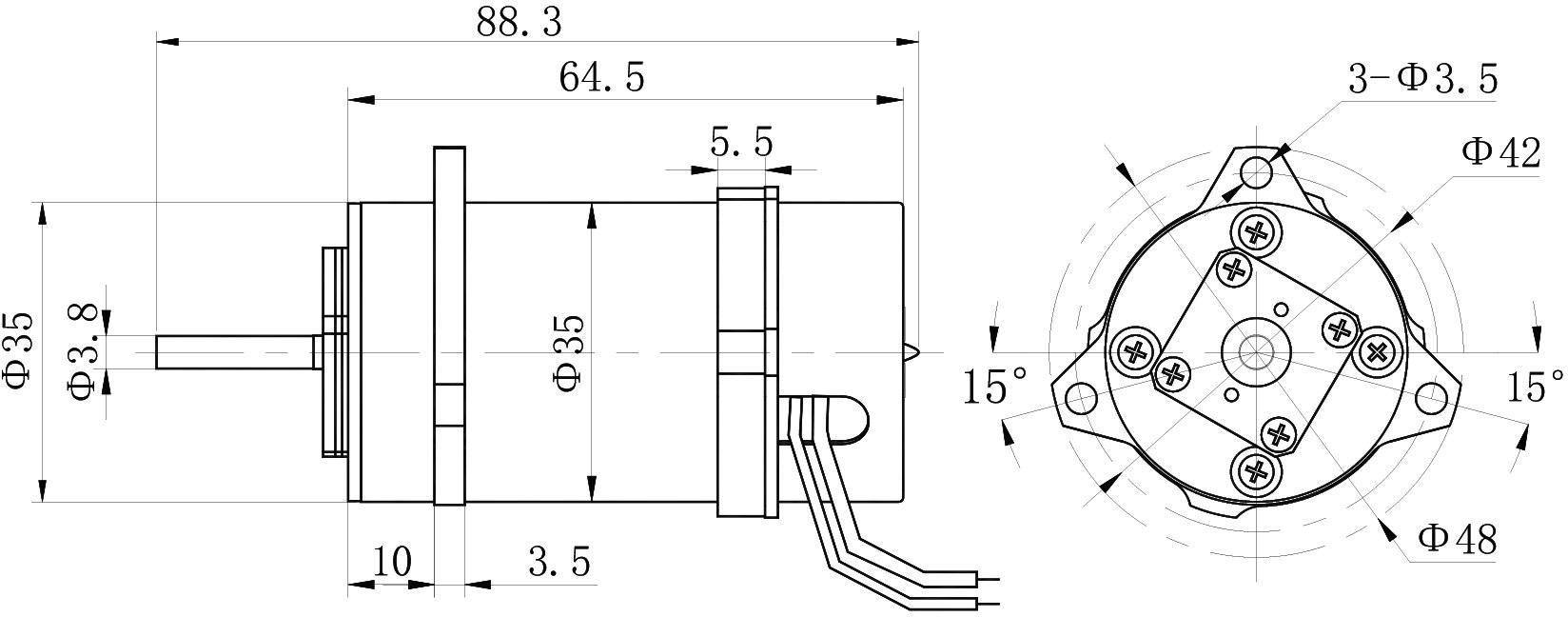

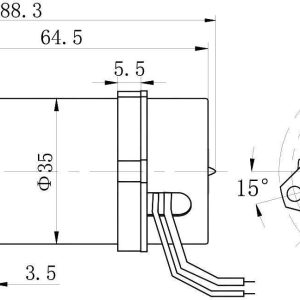

- Outline
- Reviews (0)
Description
The OJ35MZ003 is a solenoid, operating from 27Vd.c., developing ≥ 2 kg, over a 3.2+0.2 0mm stroke. It is rated for continuous duty, resets by spring return (assembly). Its stated application is automatic control equipment.
Solenoid Specifications | |
| 27Vd.c. | |
| OJ35MZ003 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 27 |
| Duty Type | Continuous |
| Actuation Type | Pull type |
| Reset Type | Spring return (assembly) |
| Coil Resistance (Ω) | Pull-in coil: 4× (1±10%) (25°C) / Holding coil: 124× (1±10%) |
| Insulation Resistance (MΩ) | ≥ 20 |
| Dielectric Strength (V, 50Hz) | 350 |
| Coil Power (W) | Pull-in coil: approx. 182 Holding coil: approx. 5.9 |
| Magnetic Force (kg) | ≥ 2 |
| Operate Voltage (Vd.c.) | ≤ 20 |
| Working Stroke (mm) | 3.2+0.2 0 |
| Coil Temperature Rise (°C) | ≤ 70 |
Environmental Conditions | |
| Temperature Range (°C) | -45 to 55 |
| Relative Humidity | 95% at 40°C |
| Vibration (Hz) | frequency 10Hz to 30Hz, amplitude 0.2mm; frequency 50Hz to 120Hz, acceleration 19.6m/s 2 |
| Shock (m/s²) | 490 |
Features | |
| Continuous Duty | |
| Pull type Actuation | |
| Spring return (assembly) | |
