OL6019K DC Solenoid – 28VDC, 8mm stroke
OL6019K DC Solenoid (pull solenoid / electromagnet): 28VDC, 8mm stroke, continuous duty. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The OL6019K is a solenoid, operating from 28Vd.c., over a 8mm stroke. It is rated for continuous duty, resets by reset by user-supplied spring force. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 28Vd.c. | |
| OL6019K | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28 |
| Duty Type | Continuous |
| Actuation Type | Pull type |
| Armature Stroke (mm) | 8 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | Pull-in coil: 260 Holding coil: 14 |
| Reset Method | Reset by user-supplied spring force |
| Coil Resistance (Ω, 25°C) | Pull-in coil: 3× (1±10%) / Holding coil: 55× (1±10%) |
| Magnetic Force (N, 25°C) | ≥ 30 |

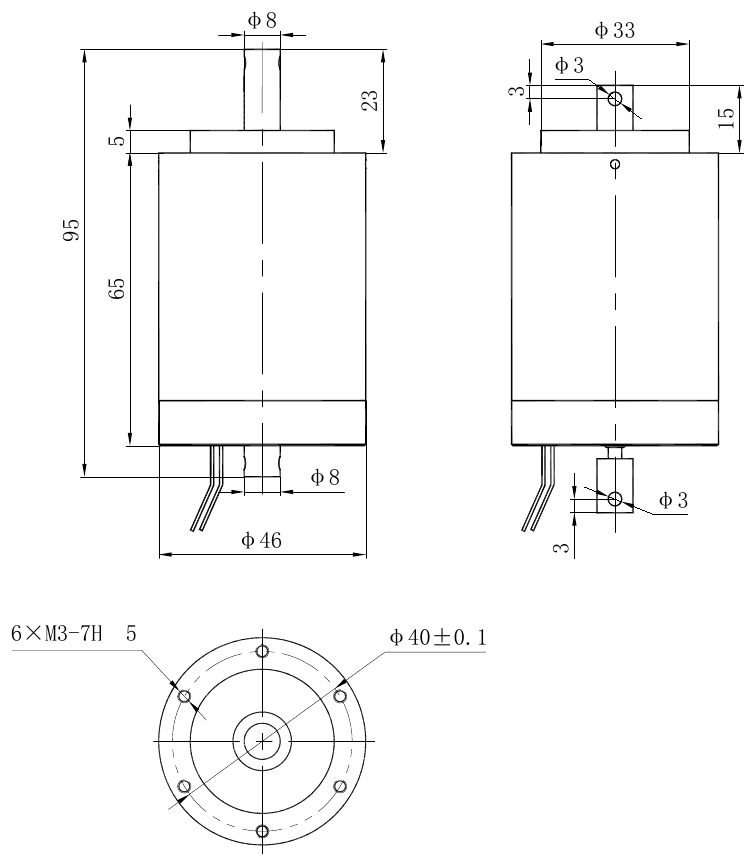

| Dimensions | See outline drawing |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 55 |
| Relative Humidity | 95% at 40°C |
Features | |
| Continuous Duty | |
| Pull type Actuation | |
| Reset by user-supplied spring force | |
