OL6132 DC Solenoid – 27VDC, ≥2kg, 4mm stroke
OL6132 DC Solenoid (pull solenoid / electromagnet): 27VDC, ≥2kg, 4mm stroke, -45 to 60°C. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet
- Outline
- Reviews (0)

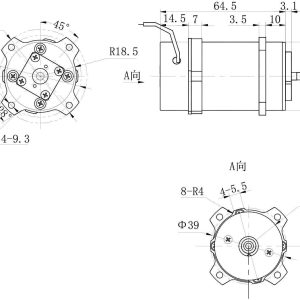

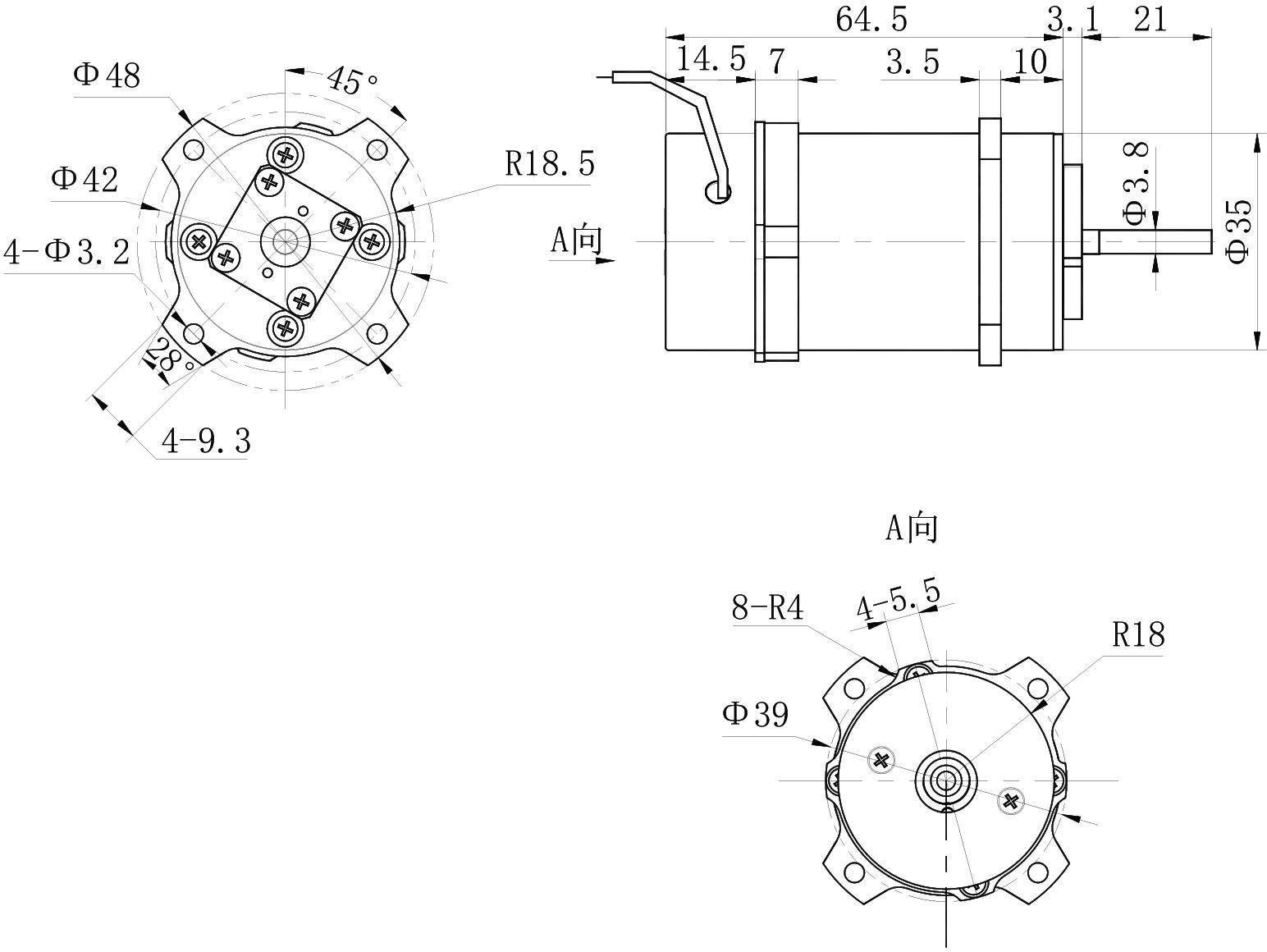

Description
The OL6132 is a solenoid, operating from 27Vd.c., developing ≥ 2 (25°C) kg, over a 4mm stroke. It is rated for continuous duty, resets by spring return (assembly). Its stated application is automatic control equipment.
Solenoid Specifications | |
| 27Vd.c. | |
| OL6132 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 27 |
| Duty Type | Continuous |
| Actuation Type | Pull type |
| Reset Type | Spring return (assembly) |
| Coil Resistance (Ω) | Pull-in coil: 3.5× (1±10%) (25°C) / Holding coil: 124× (1±10%) |
| Insulation Resistance (MΩ) | ≥ 20 |
| Dielectric Strength (V, 50Hz) | 350 |
| Coil Power (W) | Pull-in coil: approx. 208 Holding coil: approx. 5.9 |
| Magnetic Force (kg) | ≥ 2 (25°C) |
| Operate Voltage (Vd.c.) | ≤ 20 |
| Working Stroke (mm) | 4 |
| Coil Temperature Rise (°C) | ≤ 70 |
Environmental Conditions | |
| Temperature Range (°C) | -45 to 60 |
| Relative Humidity | 95% at 40°C |
| Vibration (Hz) | frequency 10Hz to 30Hz, amplitude 0.2mm; frequency 50Hz to 120Hz, acceleration 19.6m/s 2 |
| Shock (m/s²) | 490 |
Features | |
| Continuous Duty | |
| Pull type Actuation | |
| Spring return (assembly) | |
