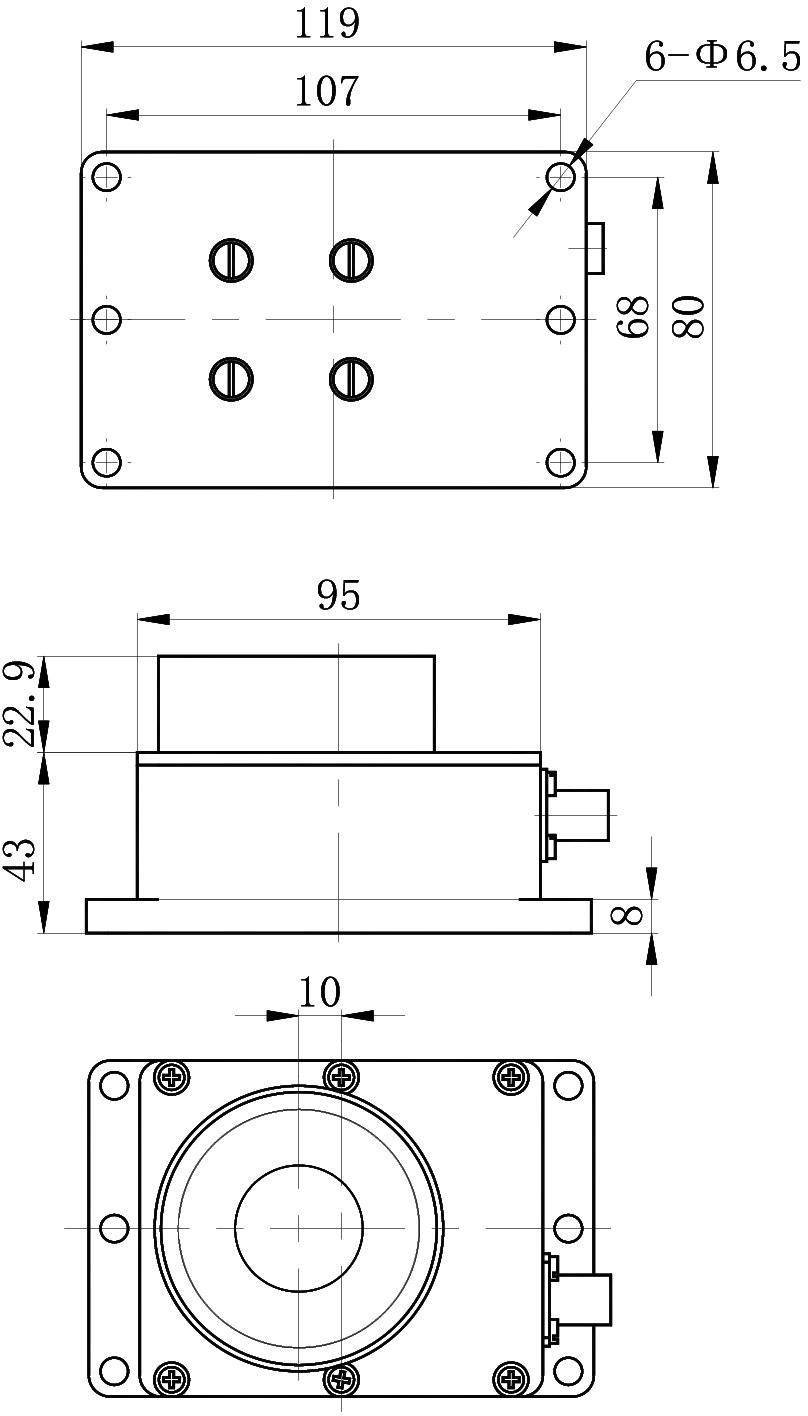

- Outline
- Reviews (0)
Description
The OL6142 is a solenoid assembly, operating from 24Vd.c.. It is rated for intermittent duty. Its stated application is automatic control equipment.
Solenoid Assembly Specifications | |
| 24Vd.c. | |
| OL6142 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 24 |
| Duty Type | Intermittent |
| Actuation Type | Energise-to-demagnetise |
| Coil Resistance (Ω) | 12× (1±10%) (25°C) |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | 48 |
| Life (operations) | 1×105 |
| Holding Force, Released (kg) | ≥ 35 (25°C) |
| Magnetic Force, Energised (kg) | ≤ 2 (25°C) |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 70 |
| Relative Humidity | 95% at 40°C |
Features | |
| Intermittent Duty | |
| Energise-to-demagnetise Actuation | |
| Rated Life 1×105 | |
