OL6155 DC Solenoid with Status Detection – 26VDC, ≥20kg, 10mm stroke
OL6155 DC Solenoid with Status Detection (solenoid with position feedback): 26VDC, ≥20kg, 10mm stroke. Datasheet and quote from RFecho.
- Description
- Datasheet

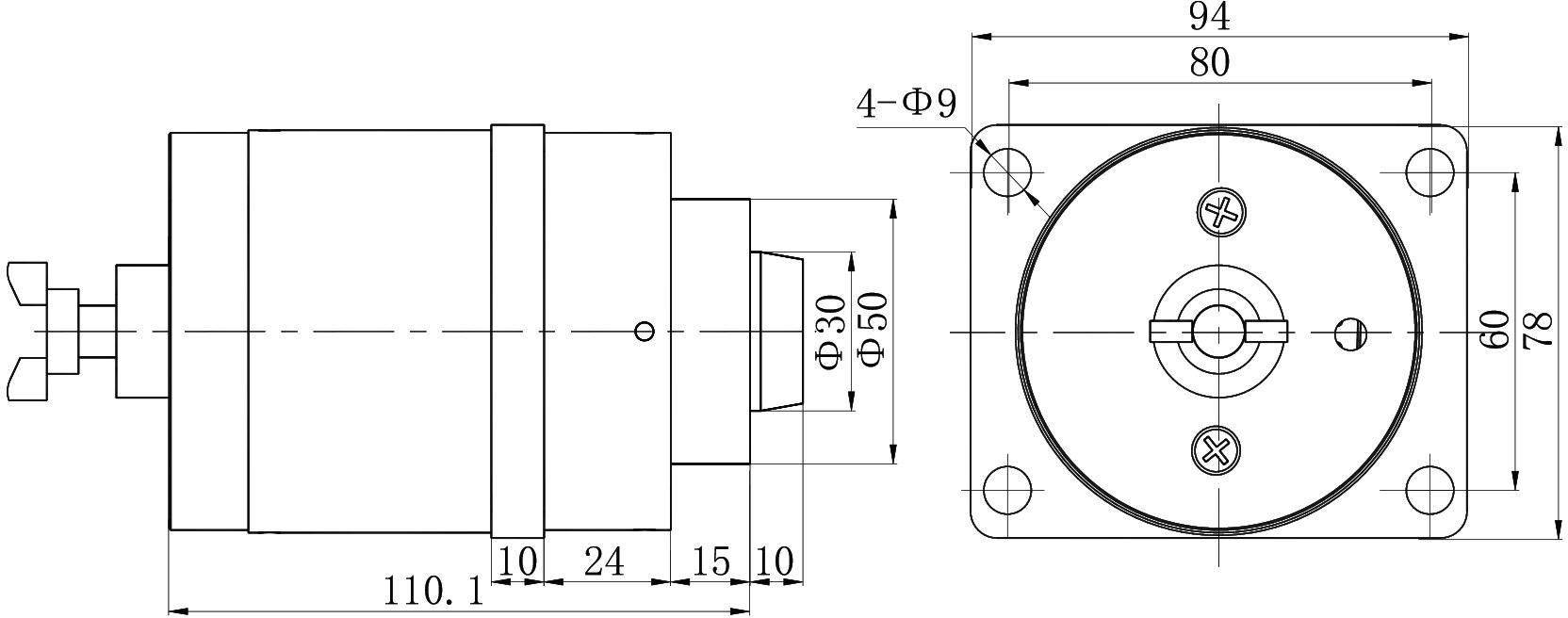

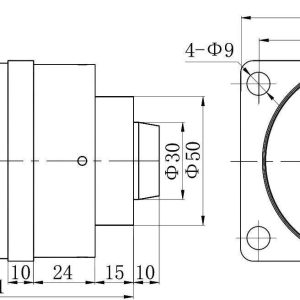

- Outline
- Reviews (0)
Description
The OL6155 is a solenoid with status detection, operating from 26Vd.c., developing ≥ 20 (25°C) kg, over a 10mm stroke. It is rated for continuous duty, resets by spring return. Its stated application is automatic control equipment.
Solenoid with Status Detection Specifications | |
| 26Vd.c. | |
| OL6155 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 26 |
| Duty Type | Continuous |
| Actuation Type | Pull type |
| Coil Resistance (Ω) | Pull-in coil: 1.8× (1±10%) (25°C) / Holding coil: 73× (1±10%) |
| Armature Stroke (mm) | 10 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | Pull-in coilapprox. 375; Holding coilapprox. 9.3 |
| Reset Method | Spring return |
| Magnetic Force (kg) | ≥ 20 (25°C) |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 60 |
| Relative Humidity | 98% at 40°C |
Features | |
| Continuous Duty | |
| Pull type Actuation | |
| Spring return | |
