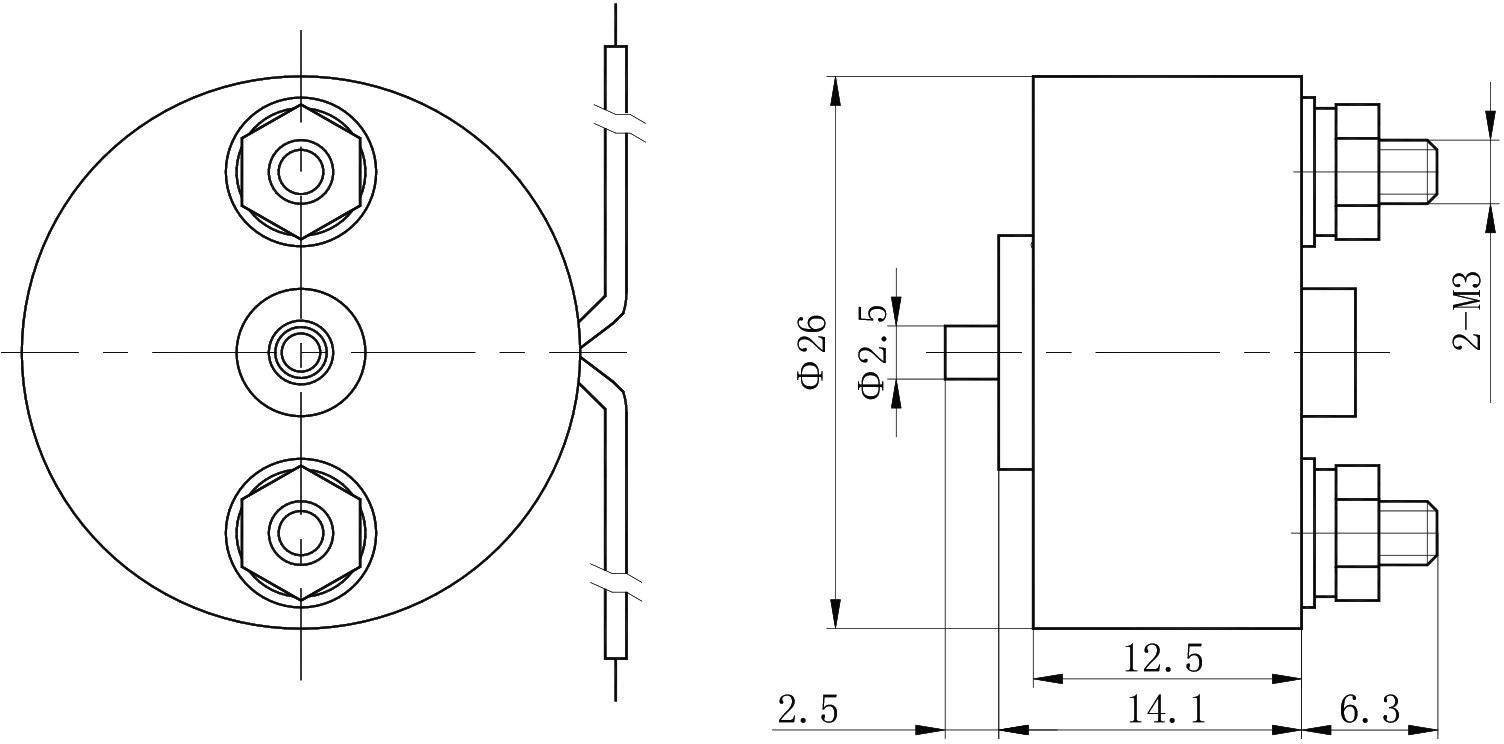

- Outline
- Reviews (0)
Description
The OL6188 is a trip solenoid, operating from 12Vd.c., developing ≥ 8 (25°C) N, over a 1.3 to 1.5mm stroke. It is rated for intermittent duty, resets by spring return. Its stated application is automatic control equipment.
Trip Solenoid Specifications | |
| 12Vd.c. | |
| OL6188 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 12 |
| Duty Type | Intermittent |
| Actuation Type | Pull type |
| Reset Type | Spring return |
| Coil Resistance (Ω) | 2.5× (1±10%) (25°C) |
| Magnetic Force (N) | ≥ 8 (25°C) |
| Armature Stroke (mm) | 1.3 to 1.5 |
| Insulation Resistance (MΩ) | ≥ 1000 |
| Dielectric Strength (V, 50Hz) | 1000 |
| Coil Power (W) | approx. 57.6 |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 70 |
| Relative Humidity | 98% at 40°C |
Features | |
| Intermittent Duty | |
| Pull type Actuation | |
| Spring return | |
