OL6191 DC Solenoid – 24VDC, ≥8kg, ≥20mm stroke
OL6191 DC Solenoid (pull solenoid / electromagnet): 24VDC, ≥8kg, ≥20mm stroke. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

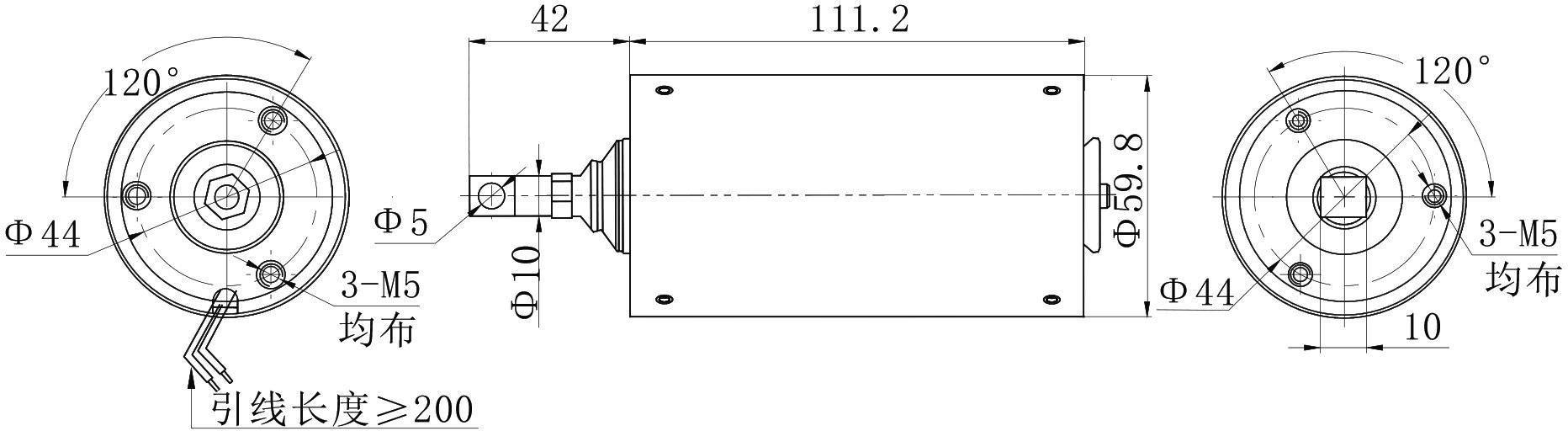

- Outline
- Reviews (0)
Description
The OL6191 is a solenoid, operating from 24Vd.c., developing ≥ 8 kg, over a ≥ 20mm stroke. It is rated for intermittent duty. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 24Vd.c. | |
| OL6191 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 24 |
| Duty Type | Intermittent |
| Actuation Type | Pull type |
| Coil Resistance (Ω) | 1.6× (1±10%) (25°C) |
| Armature Stroke (mm) | ≥ 20 |
| Magnetic Force (kg) | ≥ 8 |
Environmental Conditions | |
| Relative Humidity | 98% at 40°C |
| Vibration (Hz) | 5 to 500 to 5Hz, 4.2g |
| Shock (g) | 20 |
| Operating Temperature (°C) | -43 to 46 |
| Storage Temperature (°C) | -43 to 70 |
Features | |
| Intermittent Duty | |
| Pull type Actuation | |
