OL6226 DC Solenoid – 24VDC, ≥8mm stroke
OL6226 DC Solenoid (pull solenoid / electromagnet): 24VDC, ≥8mm stroke, -40 to 60°C. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

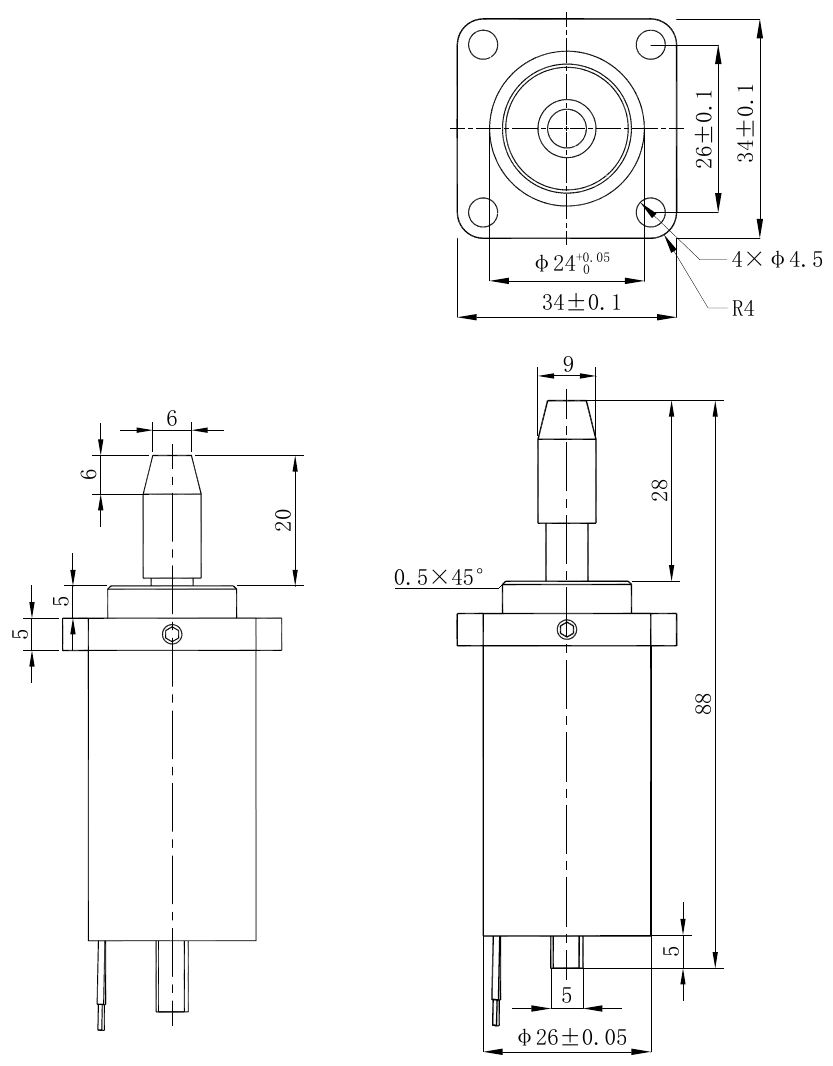

- Outline
- Reviews (0)
Description
The OL6226 is a solenoid, operating from 24Vd.c., developing Pin-pull force 10 / Holding force 45 N, over a ≥ 8mm stroke. It is rated for intermittent duty. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 24Vd.c. | |
| OL6226 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 24 |
| Duty Type | Intermittent |
| Actuation Type | Pull type |
| Magnetic Force (N) | Pin-pull force 10 / Holding force 45 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | ≥ 500 |
| Coil Power (W) | approx. 23 |
| Working Stroke (mm) | ≥ 8 |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 60 |
| Relative Humidity | 95% at 40°C |
Features | |
| Intermittent Duty | |
| Pull type Actuation | |
