OL6243 DC Solenoid – 28VDC, ≥3.5mm stroke
OL6243 DC Solenoid (pull solenoid / electromagnet): 28VDC, ≥3.5mm stroke, -50 to 70°C. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

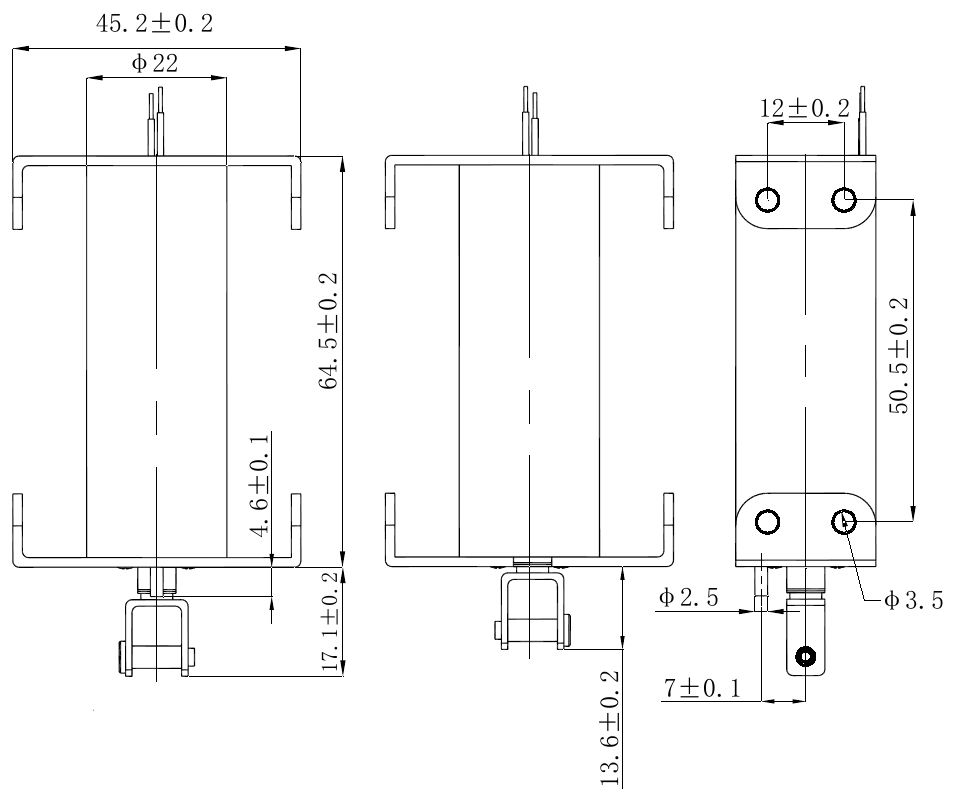

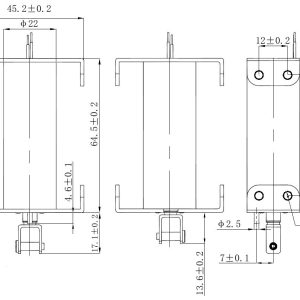

- Outline
- Reviews (0)
Description
The OL6243 is a solenoid, operating from 28Vd.c., developing Starting force 5.0 (17Vd.c starting force not less than 5N) / Holding force 30 N, over a ≥ 3.5mm stroke. It is rated for intermittent duty. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 28Vd.c. | |
| OL6243 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28 |
| Duty Type | Intermittent |
| Actuation Type | Pull type |
| Magnetic Force (N) | Starting force 5.0 (17Vd.c starting force not less than 5N) / Holding force 30 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | approx. 16.8 |
| Working Stroke (mm) | ≥ 3.5 |
| Coil Resistance (Ω, 25°C) | 47× (1±10%) |
Environmental Conditions | |
| Temperature Range (°C) | -50 to 70 |
| Relative Humidity | 95% at 40°C |
Features | |
| Intermittent Duty | |
| Pull type Actuation | |
