OL6244 DC Solenoid – 7VDC, ≥10.0N, ≥6.5mm stroke
OL6244 DC Solenoid (pull solenoid / electromagnet): 7VDC, ≥10.0N, ≥6.5mm stroke. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

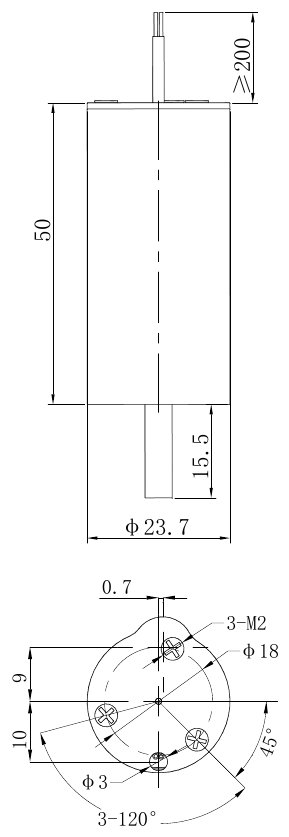

- Outline
- Reviews (0)
Description
The OL6244 is a solenoid, operating from 7Vd.c., developing ≥ 10.0 N, over a ≥ 6.5mm stroke. It is rated for intermittent duty. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 7Vd.c. | |
| OL6244 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 7 |
| Duty Type | Intermittent |
| Actuation Type | Push type |
| Magnetic Force (N) | ≥ 10.0 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | approx. 36.3 |
| Working Stroke (mm) | ≥ 6.5 |
| Coil Resistance (Ω, 25°C) | 1.35× (1±5%) |
Environmental Conditions | |
| Temperature Range (°C) | -50 to 70 |
| Relative Humidity | 95% at 40°C |
Features | |
| Intermittent Duty | |
| Push type Actuation | |
