OM6018 Magnetic Latching Solenoid – 28VDC, ≥40N, 5mm stroke
OM6018 Magnetic Latching Solenoid (bistable / permanent-magnet latching solenoid): 28VDC, ≥40N, 5mm stroke. Datasheet and quote from RFecho.
- Description
- Datasheet

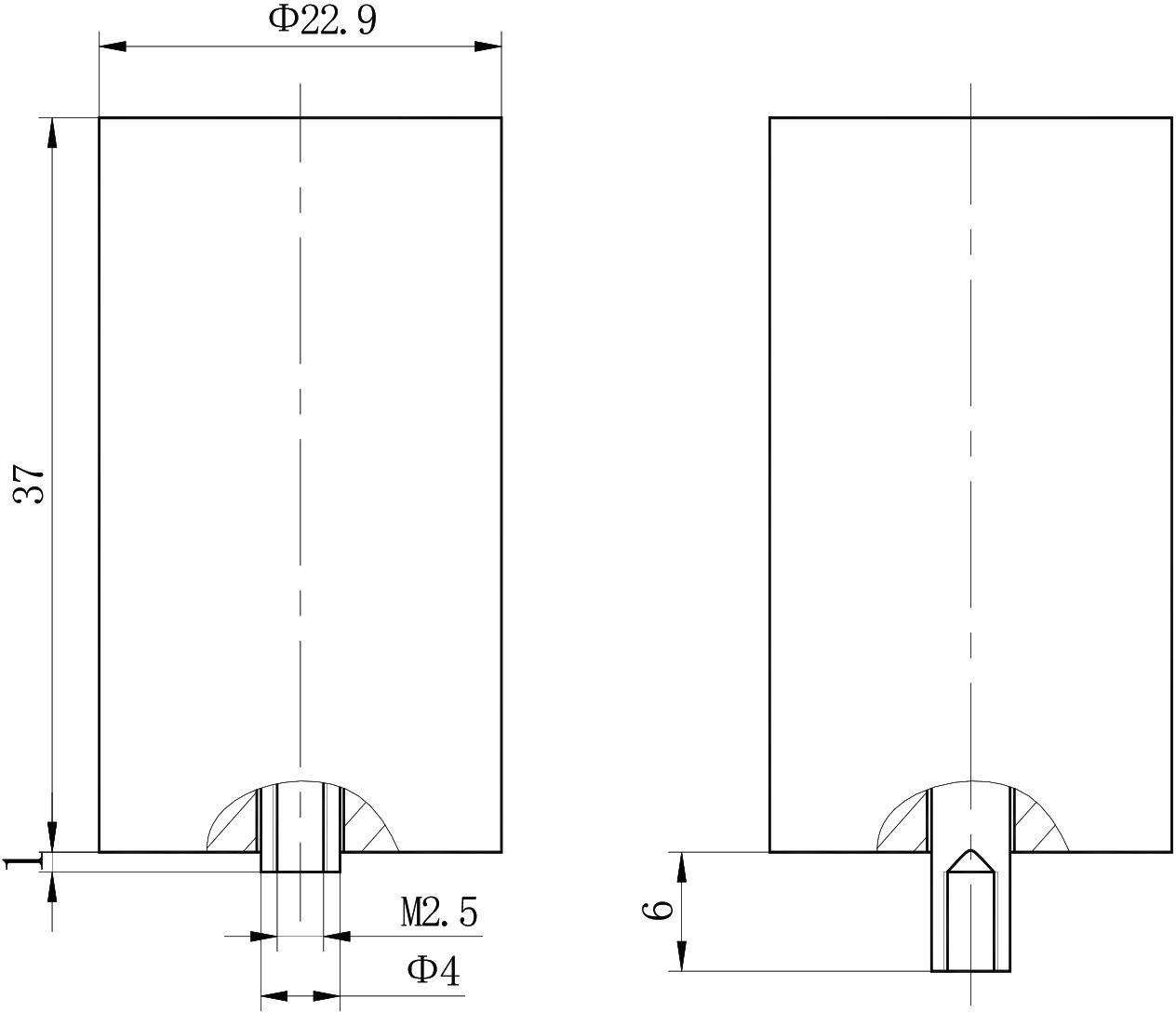

- Outline
- Reviews (0)
Description
The OM6018 is a magnetic latching solenoid, operating from 28Vd.c. bidirectional pulse voltage (pulse width 100ms)Vd.c., over a 5mm stroke. It is rated for magnetic latching duty. Its stated application is automatic control equipment.
Magnetic Latching Solenoid Specifications | |
| 28Vd.c. bidirectional pulse voltage (pulse width 100ms)Vd.c. | |
| OM6018 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28Vd.c. bidirectional pulse voltage (pulse width 100ms) |
| Duty Type | Magnetic latching |
| Coil Resistance (Ω) | 16.5× (1±10%) (25°C) |
| Armature Stroke (mm) | 5 |
| Insulation Resistance (MΩ) | ≥ 1000 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | approx. 47.5 |
| Magnetic Force (25°C) | 22V pull force ≥ 2N push force ≥ 2N / 32V pull force ≥ 2N push force ≥ 1N |
| Non-Operate Voltage (Vd.c.) | ≤ 8 |
| Holding Force (N) | ≥ 40 |
| Life (operations) | 2×103 |
Environmental Conditions | |
| Temperature Range (°C) | -60 to 70 |
| Relative Humidity | 98% at 25°C |
Features | |
| Magnetic latching Duty | |
| Rated Life 2×103 | |
