OM6144 Magnetic Latching Solenoid – 28VDC, ≥6N, 5mm stroke
OM6144 Magnetic Latching Solenoid (bistable / permanent-magnet latching solenoid): 28VDC, ≥6N, 5mm stroke. Datasheet and quote from RFecho.
- Description
- Datasheet

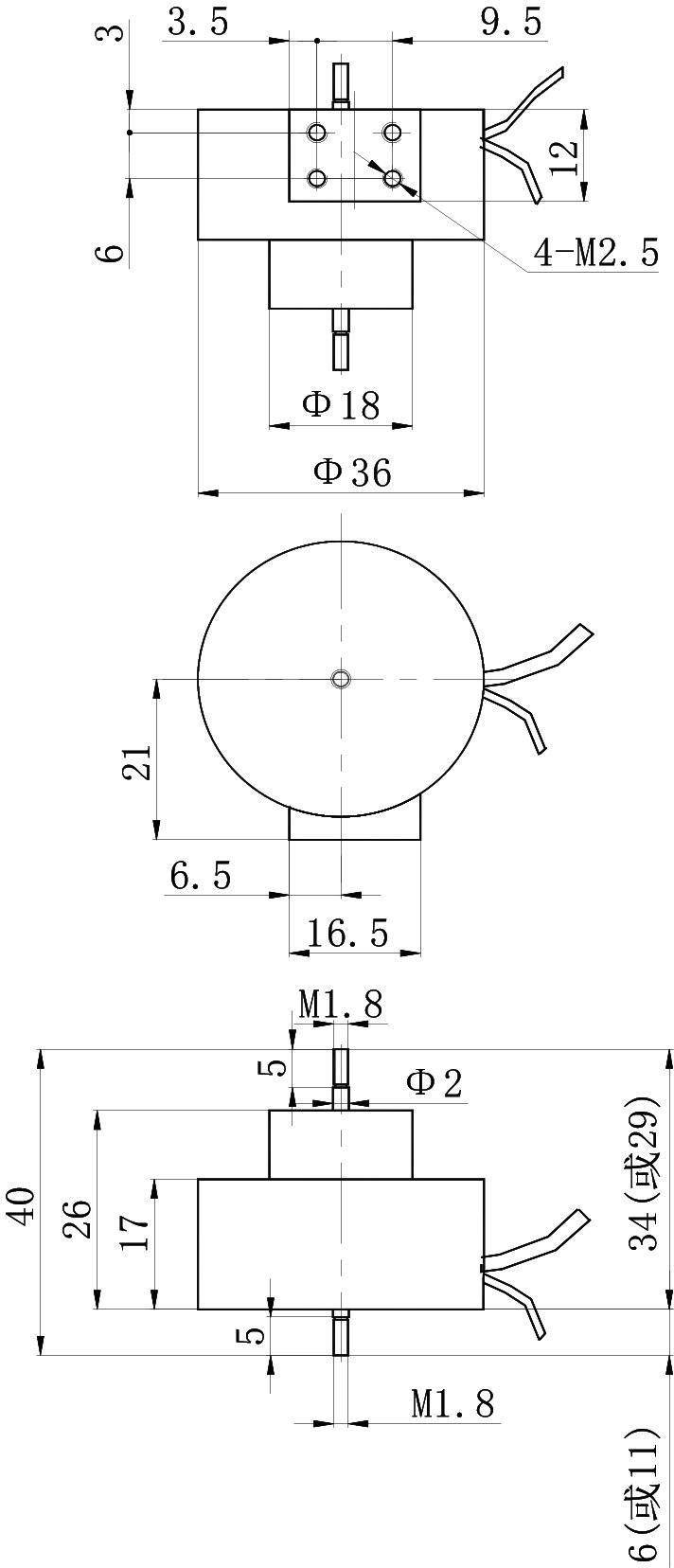

- Outline
- Reviews (0)
Description
The OM6144 is a magnetic latching solenoid, operating from 28Vd.c. bidirectional pulse voltageVd.c., developing ≥ 6(25°C) N, over a 5mm stroke. It is rated for magnetic latching duty. Its stated application is automatic control equipment.
Magnetic Latching Solenoid Specifications | |
| 28Vd.c. bidirectional pulse voltageVd.c. | |
| OM6144 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28Vd.c. bidirectional pulse voltage |
| Duty Type | Magnetic latching |
| Coil Resistance (Ω) | 12× (1±10%) (25°C) |
| Magnetic Force (N) | ≥ 6(25°C) |
| Armature Stroke (mm) | 5 |
| Insulation Resistance (MΩ) | ≥ 100 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | approx. 65 |
| Holding Force (N) | ≥ 6 |
| Life (operations) | 1×105 |
| Pulse Width (ms) | 50 to 70 |
Environmental Conditions | |
| Temperature Range (°C) | -30 to 55 |
| Relative Humidity | 98% at 40°C |
Features | |
| Magnetic latching Duty | |
| Rated Life 1×105 | |
