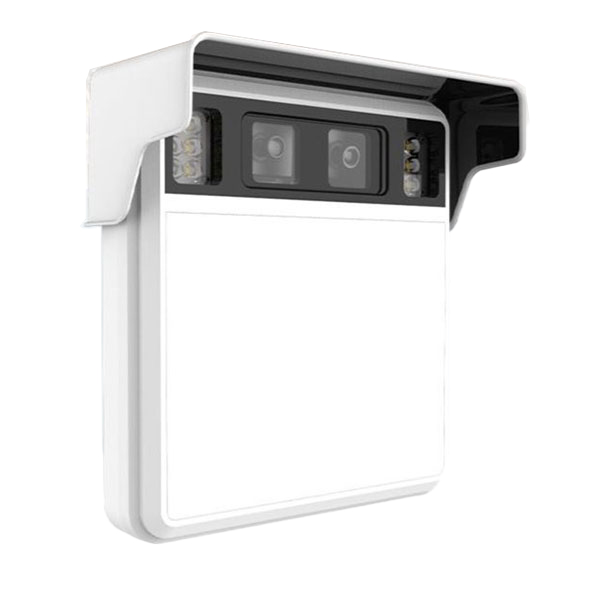

OR-T13 Fusion Perception Wide-field
Full-range radar-video fusion for enhanced perception
Ultra-low latency with superior synchronization
Integrated viewing window heating and defogging
Highly precise signal control indicator output
Streamlined delivery and maintenance processes
Stable and continuous target trajectory tracking
Comprehensive traffic event and statistics detection
Long-range coverage up to 500 meters
- Description
- Datasheet
- Reviews (0)
Description
The OR-T13 is a fusion perception wide-field traffic millimeter-wave radar that integrates an 80GHz high-precision radar with dual 8MP short-focus and long-focus cameras. It supports high-accuracy radar-video fusion trajectory tracking and covers up to 10 lanes with a longitudinal range of 500 meters. The OR-T13 provides comprehensive traffic data including flow statistics, queue length, and average speed, while supporting target structuring and license plate recognition. It excels in detecting traffic events like congestion, illegal parking, and wrong-way driving. With MEC interface capability for dropped object detection, it is an ideal solution for intelligent intersections, tunnels, and highways.
OR-T13 |
|
|
OR-T13 Fusion Perception Wide-field |
|
Property |
Value |
|
Camera Compression Standard |
H.264, H.265, MJPEG |
|
Camera Lens Type Dual |
12mm (20~200m) & 25mm (200~350m) @ F2.0 |
|
Camera Minimum Illumination |
0.001 Lux @ (F1.2, AGC ON |
|
Camera Protocol Support |
RTSP, GB/T 28181, ONVIF |
|
Camera Sensor Type |
1/1.8 inch CMOS, 8.0MP effective pixels |
|
Camera Shutter Speed |
1/25s ~ 1/10000s |
|
Camera Video Resolution |
3840 (H) 2160 (V) |
|
Internal Components LED Fill Light |
20-30m white light for LPR |
|
Internal Components TF Card / GPS |
TF Supported / GPS Optional |
|
Maximum Radar Detection Target Count |
>=512 |
|
Maximum Speed Detection Range |
200 km/h |
|
Millimeter-wave Radar Angle Accuracy |
+/-0.04deg (far); +/-0.12deg (mid); +/-0.25deg (near) |
|
Millimeter-wave Radar Detection Distance |
20~500m (unobstructed environment) |
|
Millimeter-wave Radar Distance Accuracy |
0.4m |
|
Millimeter-wave Radar Lane Coverage |
10 lanes |
|
Millimeter-wave Radar Speed Accuracy |
0.16km/h |
|
Millimeter-wave Radar Speed Range |
-200km/h ~ 200km/h |
|
Millimeter-wave Radar Working Frequency |
80GHz |
|
Operating Environment |
Open field and unobstructed |
|
Product Dimensions |
280 mm (W) 210 mm (H) 65 mm (D) |
|
Radar-Video Fusion Accuracy |
>=95%, LPR >=95%, Type Recognition >=90% |
|
Radar-Video Fusion Event Detection |
Detection rate >=96%, False alarm rate <=1 per 24h |
|
Radar-Video Fusion Traffic Statistics |
Flow (>=99%), Queue (>=90%), Speed Error (<5%) |
|
Waterproof Grade |
IP67 |
|
Weight |
3.8 kg |
Features |
|
|
Full-range radar-video fusion for enhanced perception |
|
|
Ultra-low latency with superior synchronization |
|
|
Integrated viewing window heating and defogging |
|
|
Highly precise signal control indicator output |
|
|
Streamlined delivery and maintenance processes |
|
|
Stable and continuous target trajectory tracking |
|
|
Comprehensive traffic event and statistics detection |
|
|
Long-range coverage up to 500 meters |
|
Applications |
|
|
With MEC interface capability for dropped object detection, it is an ideal solution for intelligent intersections, tunnels, and highways. |
|
