Description
The OT6264 is a solenoid, operating from 28Vd.c., developing ≥ 35 kg, over a 7mm stroke. It is rated for continuous duty, resets by spring return. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 28Vd.c. | |
| OT6264 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28 |
| Duty Type | Continuous |
| Actuation Type | Push type |
| Reset Type | Spring return |
| Armature Stroke (mm) | 7 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | Pull-in coilapprox. 784 Holding coilapprox. 16 |
| Magnetic Force (kg) | ≥ 35 |
| Coil Resistance (Ω, 25°C) | Pull-in coil: 1.0× (1±10%) / Holding coil: 50× (1±10%) |

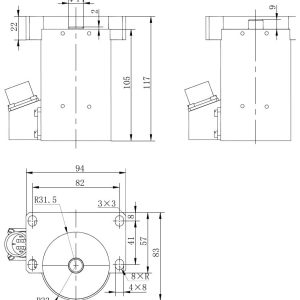

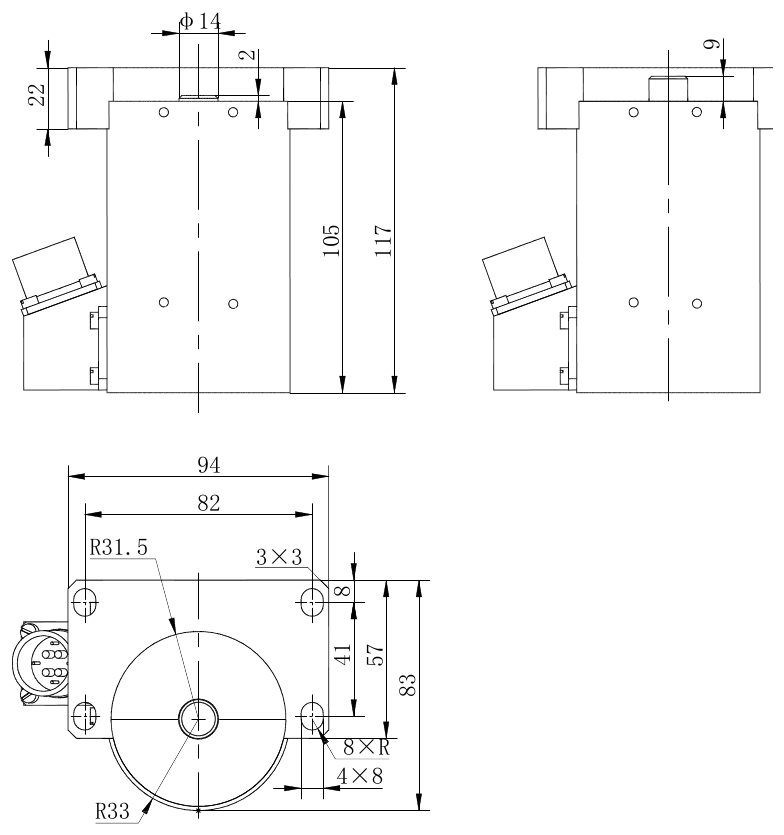

| Dimensions | See outline drawing |
Environmental Conditions | |
| Temperature Range (°C) | -43 to 60 |
| Relative Humidity | 95% at 40°C |
Features | |
| Continuous Duty | |
| Push type Actuation | |
| Spring return | |
