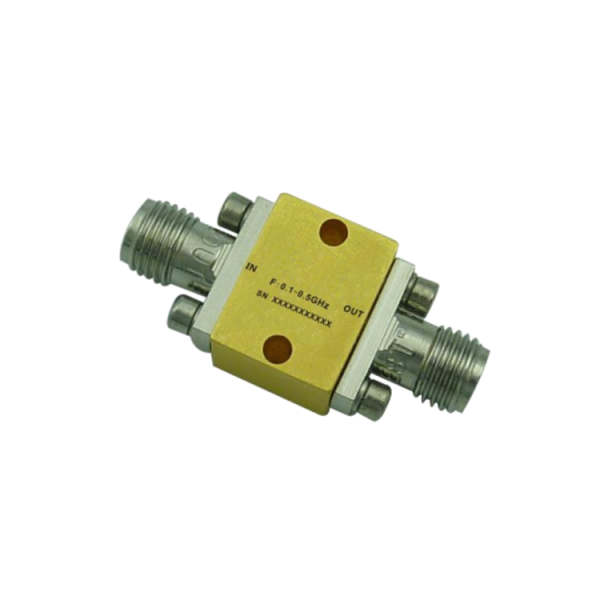

Power Limiter 0.1GHz – 0.5GHz . OLT3800100050A

RFECHO Power Limiter is an active product, and its frequency range from 0.1GHz to 0.5GHz . The RFECHO Power Limiter has a High Isolation Limiter, Low insertion loss and good return loss, etc. according to the conditions of different working frequencies, microwave power, microwave pulse width, duty cycle and required interface form, the design of RFECHO limiter has different innovative adjustments.

SKU: OLT3800100050A Categories: Active Device, power limiter

Description

















Additional information

Min. Frequency (GHz)

0.1

Max. Frequency (GHz)

0.5

CW Input Power (W)

5

Peak Power Flat Linkage (dBm)

20

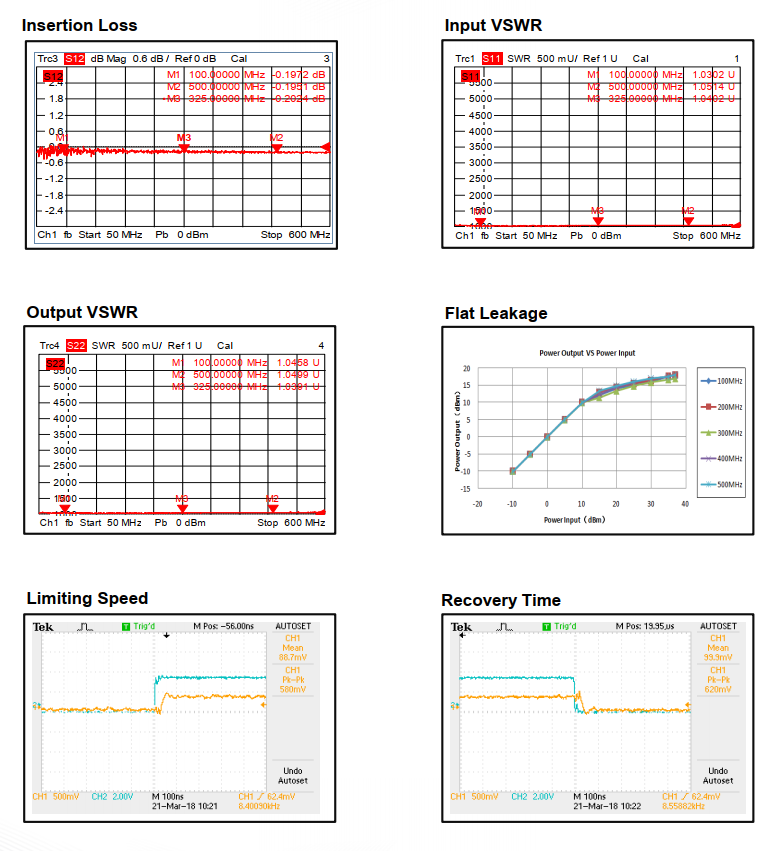

Insertion Loss (dB)

0.3

VSWR

1.1
