SA2260 Spectrum Analyzer Frequency range:9kHz∼26.5GHz

SA2260 Spectrum Analyzer Frequency range:9kHz∼26.5GHz

0 out of 5

The SA2260 spectrum analyzer is a wide band,
high-performance microwave spectrum analyzer that measures
frequency range from 9kHz∼26.5GHz. The
product uses an all-aluminum chassis, an 8.4-inch high-brightness
display screen, and has a excellent environmental adaptability.
Highly integrated RF front-end and digital IF technology ensure its
outstanding and stable performance. The maximum real-time
bandwidth of 40MHz meets the testing of commonly used radio
signals such as mobile communications, TV, and WiFi. The
145MHz analog IF output provides users with a variety of test
options. The product has a variety of intelligent measurement
functions such as spectrum analysis, field strength measurement,
channel scanning, third-order inter modulation, harmonic
distortion, signal-to-noise ratio, and Pass-Fail, and can be widely
used in aerospace, microwave communications, satellite
navigation, radar detection, electronic detection and confrontation,
precision guidance and other fields.

Description

SPEC

Spectrum Analyzer

SA2260 Spectrum Analyzer
Frequency range:9kHz∼26.5GHz

SA2260

The SA2260 spectrum analyzer is a wide band,
high-performance microwave spectrum analyzer that measures
frequency range from 9kHz∼26.5GHz. The
product uses an all-aluminum chassis, an 8.4-inch high-brightness
display screen, and has a excellent environmental adaptability.
Highly integrated RF front-end and digital IF technology ensure its
outstanding and stable performance. The maximum real-time
bandwidth of 40MHz meets the testing of commonly used radio
signals such as mobile communications, TV, and WiFi. The
145MHz analog IF output provides users with a variety of test
options. The product has a variety of intelligent measurement
functions such as spectrum analysis, field strength measurement,
channel scanning, third-order inter modulation, harmonic
distortion, signal-to-noise ratio, and Pass-Fail, and can be widely
used in aerospace, microwave communications, satellite
navigation, radar detection, electronic detection and confrontation,
precision guidance and other fields.

Property

Value

Frequency Range

9kHz∼26.5GHz

Amplitude Accuracy

20GHz∼26.5GHz,±2.5dB

Phase Noise(@10kHz,f=2GHz)

SA2260:≤-95dBc/Hz(@10kHz,f=1GHz)

Noise Level

<-160dBm

Model Type

Benchtop

Power

AC

Dimensions

WR-51

Features

Image frequency /IF rejection:80dB Spectrogram、 CHP、 ACPR、 OBW、 CNR、 TOI、 HD、

Frequency counter、Audio Demo、Pass-Fail etc Advanced measurement

All metal chassis,Super strong shielding performance and EMC
characteristics

Applications

Datasheet

Characteristics

Measures Main Channel Power, Power of the Two AdjacentChannels Before and After, and Their Power Difference Relativeto the Main Channel

The graph illustrates the demodulated modulation signal from anAM modulated signal.

Measurement of Power and Power Density within a SpecifiedChannel Bandwidth

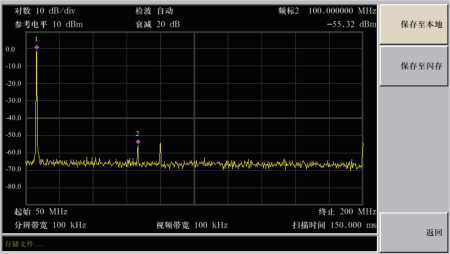

Clear and bright trace lines, easy operation.

Enhanced Accuracy for the Test Signal’s Frequency Accuracy

Measures the power of each harmonic of the carrier signal and thetotal harmonic distortion.

Setting up to five frequency markers concurrently, and each markercan be defined in either a normal or delta mode.

Utilize this feature for rapid measurement of signal bandwidthBy setting the dB difference from peak power (NdB), it providesreal-time bandwidth at that point.

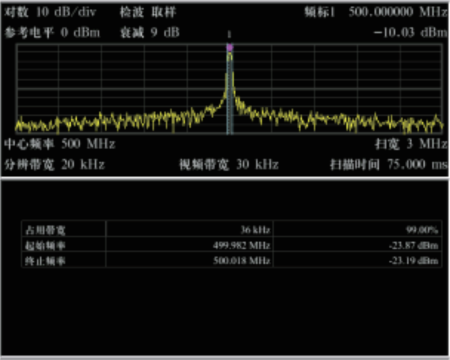

Integrates Power over the Entire Scan Width and Calculates theBandwidth Occupied by the Specified Power Ratio Based on theSet Power Ratio

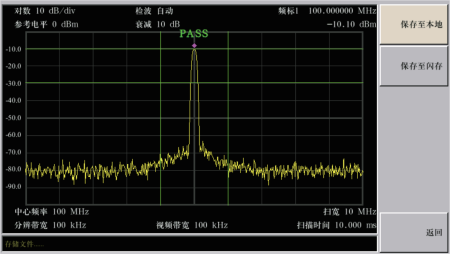

Verifies Whether the Tested Signal is Located Within the Set Windowor Area

Spectrogram provides a three-dimensional perspective where timeis represented through either depth or color coding, which makesit particularly effective for observingtemporal changes in frequency content.

Measures Parameters of the Third-order Intermodulation Productof Two Signals (with Equal Amplitudes and Close Frequencies)

Additional information

Frequency Range

9kHz∼26.5GHz

Amplitude Accuracy

20GHz∼26.5GHz,±2.5dB

Phase Noise(@10kHz,f=2GHz)

SA2260:≤-95dBc/Hz(@10kHz,f=1GHz)

Model Type

Benchtop

Power

AC

Dimensions

WR-51
