SG2060A Multi-standard Signal GeneratorThe frequency range from 9kHz to 6.0GHz

SG2060A Multi-standard Signal GeneratorThe frequency range from 9kHz to 6.0GHz

0 out of 5

$12280

The SG2060A is a high-performance multi-standard signal generator. It provides comprehensive modulation solutions such as: continue-wave signal,and standard AM/FM/ΦM analog modulation, and standard pulse modulation,and I/Q modulation ,frequency and amplitude
sweep. The SG2000 also supports some options such as base-band signal generator, linear frequency modulation, special communication standard
signal and frequency up convert function. In addition, to meet the demands of production secondary development, the SG2000 equipped with LAN and
USB interfaces, and provides standard SCPI command. The SG2000 also features a clear user interface, small size and light weight. It is easy to operate
and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.

Description

SPEC

Spectrum Analyzer

SG2060A Multi-standard Signal Generator
The frequency range from 9kHz to 6.0GHz

SG2060A

The SG2060A is a high-performance multi-standard signal generator. It provides comprehensive modulation solutions such as: continue-wave signal,and standard AM/FM/ΦM analog modulation, and standard pulse modulation,and I/Q modulation ,frequency and amplitude
sweep. The SG2000 also supports some options such as base-band signal generator, linear frequency modulation, special communication standard
signal and frequency up convert function. In addition, to meet the demands of production secondary development, the SG2000 equipped with LAN and
USB interfaces, and provides standard SCPI command. The SG2000 also features a clear user interface, small size and light weight. It is easy to operate
and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.

Property

Value

Frequency Range

9kHz to 6.0GHz

Setting range

9kHz-50kHz:-120dBm-0dBm
50kHz∼6.0GHz:-120dBm-+10dBm

SSB phase noise(@ 10KHz , f= 1GHz)

≤ – 98d Bc/Hz

Display

4 . 3 “

Model Type

Portable

Power

AC

Dimensions

385mmx103mmx410mm

Features

Pure Continuous Wave output

Standard analog modulation: AM/FM/ФM

Pulse modulation with minimum pulse width of 100ns

Applications

Primarily utilized in the electronic communications industry and microwave electronic measurement sectors, it is also well-suited for educational and research purposes, product development, manufacturing, maintenance. and other related scenarios.

Datasheet

Characteristics

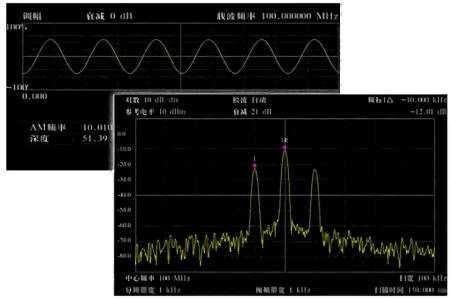

Analog Modulation

AM/FM/ФM, Customizable modulation(SSB/DSB/CW)

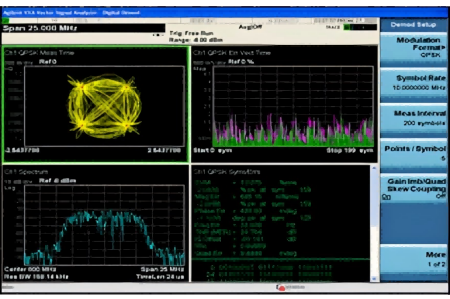

Digital Modulation

ASKFSK/PSK/OAM built-in IQ modulator(Model-B)

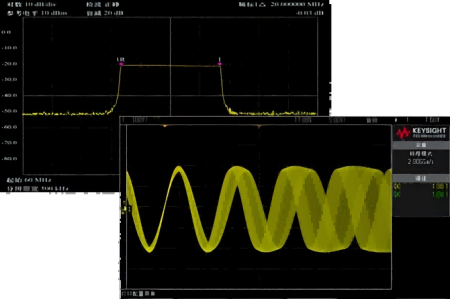

Linear Frequency Modulation

Linear frequency modulation can simultaneously retain thecharacteristics of continuous signals and pulses.

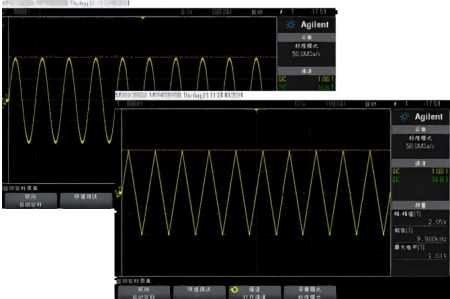

Low Frequency Output

low-frequency output: sine waves, square waves, triangular waves,and sawtooth waves

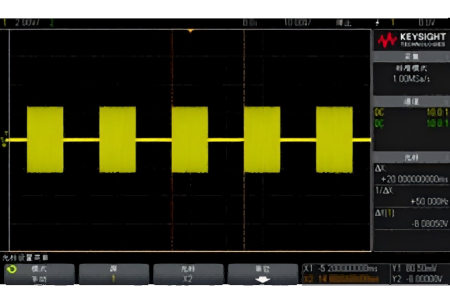

Pulse Modulation

Pulse modulation with minimum pulse width of 100ns, supporting Internal/External pulse modulation input, External trigger input

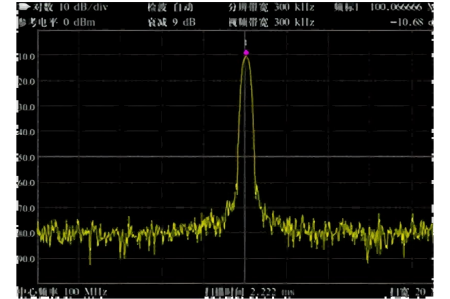

Pure Continuous Wave

Outputting signals at various frequencies and amplitudes. Output dynamic range ofup to 130 dBm.

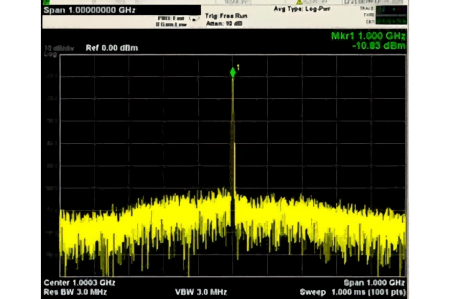

RF Up-conversion

Input frequency range:190+30MHz,Output frequency range:201MHz~3 .0GHz

Step Sweep Signal

The signal generator is capable of generating sweep signals withequal steps, including three sweep modes: frequency sweep,amplitude sweep, and frequency + amplitude sweep.Sweep type:Step sweep,List sweep

Additional information

Frequency Range

9kHz to 6.0GHz

Setting range

9kHz-50kHz:-120dBm-0dBm 50kHz∼6.0GHz:-120dBm-+10dBm

SSB phase noise(@ 10KHz , f= 1GHz)

≤ – 98d Bc/Hz

Display

4 . 3 "

Model Type

Portable

Power

AC

Dimensions

385mmx103mmx410mm
