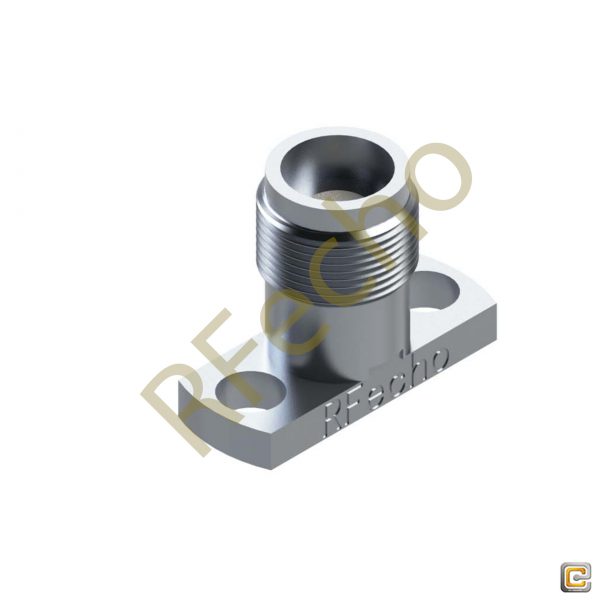

SMA 27 GHz, 0.015″ Accept Pin Diameter, 2 Hole .500 Long″ Mounting Flange Male Connector

SMA 27 GHz, 0.015″ Accept Pin Diameter, 2 Hole .500 Long″ Mounting Flange Male Connector

Model D590-P18-F04 is a Male connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 2 Hole .500 Long″ mounting and accept pin diameter is 0.015″inches.

SKU: D590-P18-F04 Categories: Adapters and Connectors, RF Connector SMA, RF Connectors

Description

SPEC

SMA Connector

SMA 27 GHz, 0.015″ Accept Pin Diameter, 2 Hole .500 Long″ Mounting Flange Male Connector

D590-P18-F04

Model D590-P18-F04 is a Male connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 2 Hole .500 Long″ mounting and accept pin diameter is 0.015″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

27

Flange (inch)

.500 Long″

Mounting

2 Hole

Accept Pin Diameter (inch)

0.015″

Gender

Male

Features

Low VSWR

Free through 27 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

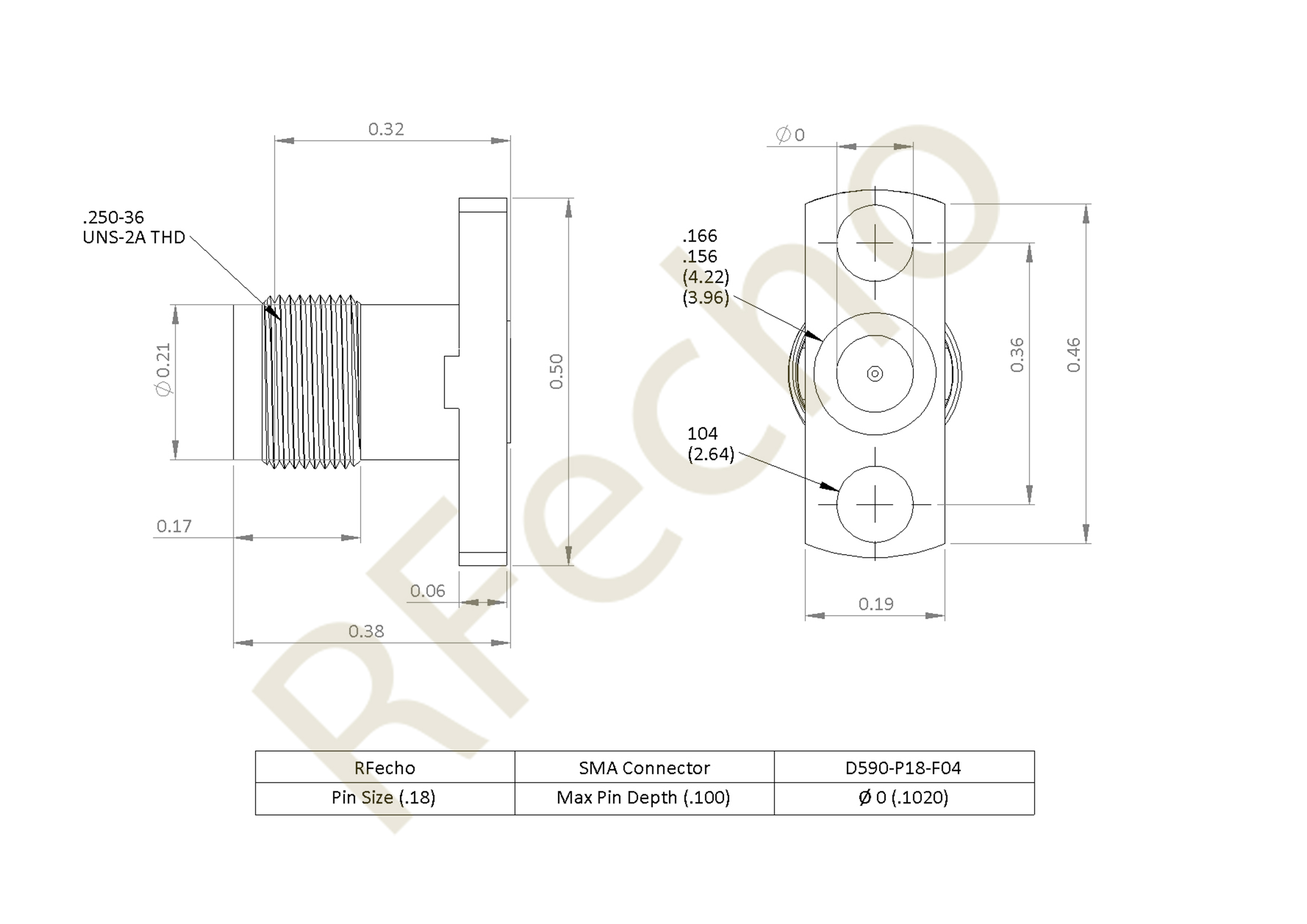

Outline

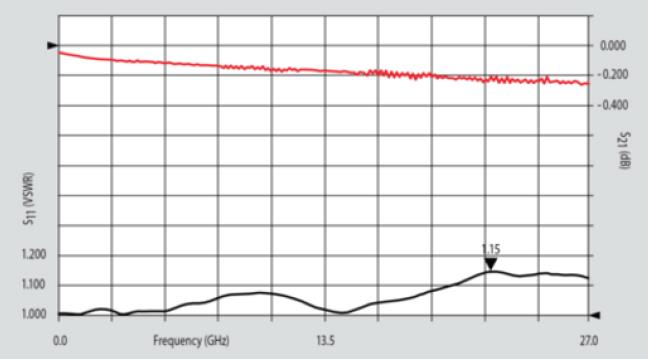

Plot

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

27

Flange (inch)

.500 Long″

Mounting

2 Hole

Accept Pin Diameter (inch)

0.015″

Gender

Male
