SMA 27 GHz, 0.018″ Accept Pin Diameter, 4 Hole .375 Square″ Mounting Flange Male Connector

SMA 27 GHz, 0.018″ Accept Pin Diameter, 4 Hole .375 Square″ Mounting Flange Male Connector

Model D590-P36-F02 is a Male connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 4 Hole .375 Square″ mounting and accept pin diameter is 0.018″inches.

Description

SPEC

SMA Connector

SMA 27 GHz, 0.018″ Accept Pin Diameter, 4 Hole .375 Square″ Mounting Flange Male Connector

D590-P36-F02

Model D590-P36-F02 is a Male connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 4 Hole .375 Square″ mounting and accept pin diameter is 0.018″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

27

Flange (inch)

.375 Square″

Mounting

4 Hole

Accept Pin Diameter (inch)

0.018″

Gender

Male

Features

Low VSWR

Free through 27 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

Outline

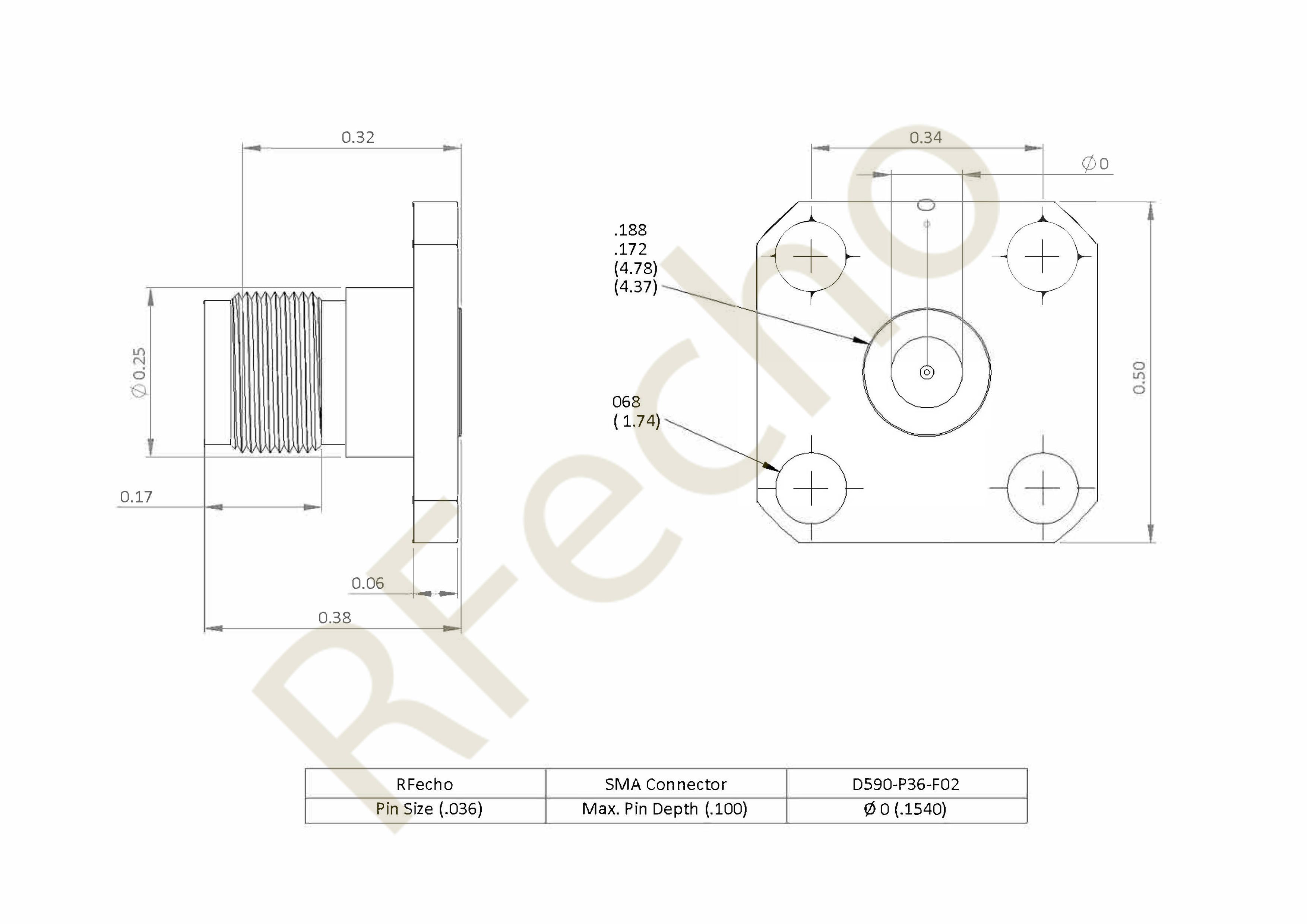

D590 P36 F02 outline SMA 27 GHz, 0.018″ Accept Pin Diameter, 4 Hole .375 Square″ Mounting Flange Male Connector

Plot

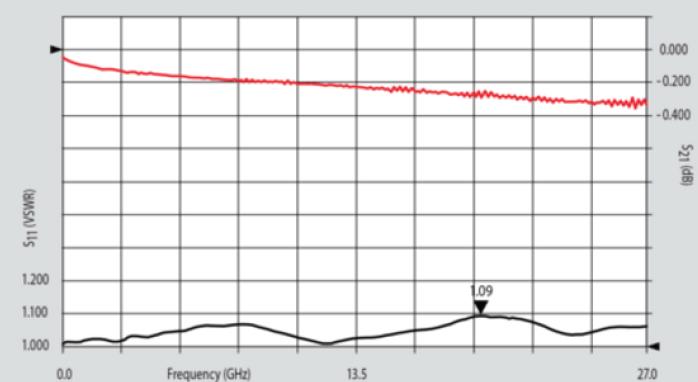

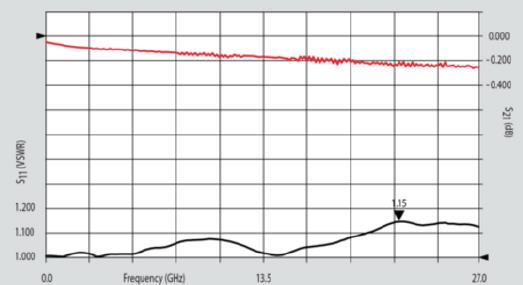

D590 P36 F02 plot1 SMA 27 GHz, 0.018″ Accept Pin Diameter, 4 Hole .375 Square″ Mounting Flange Male ConnectorD590 P36 F02 plot2 SMA 27 GHz, 0.018″ Accept Pin Diameter, 4 Hole .375 Square″ Mounting Flange Male Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

27

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
