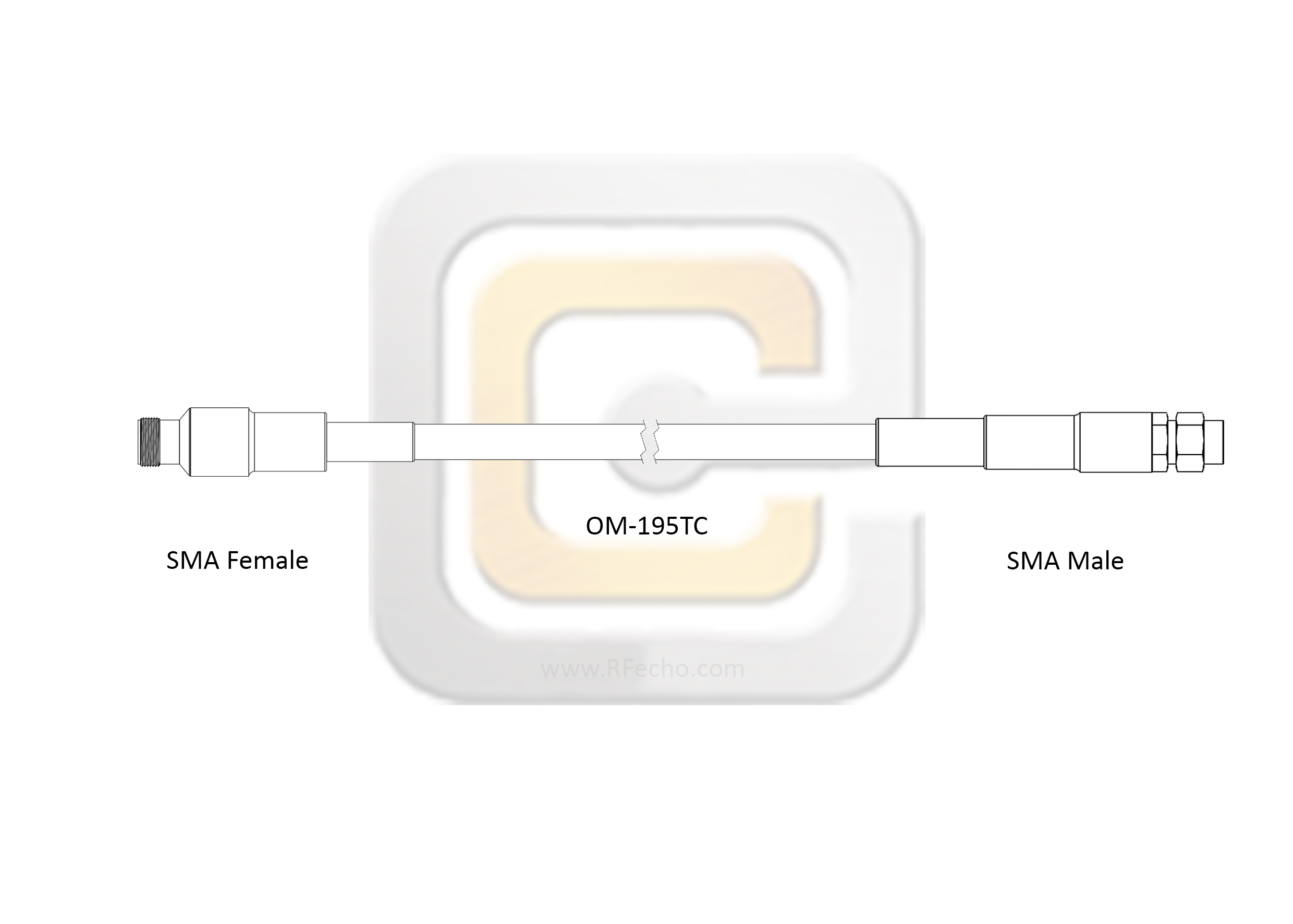

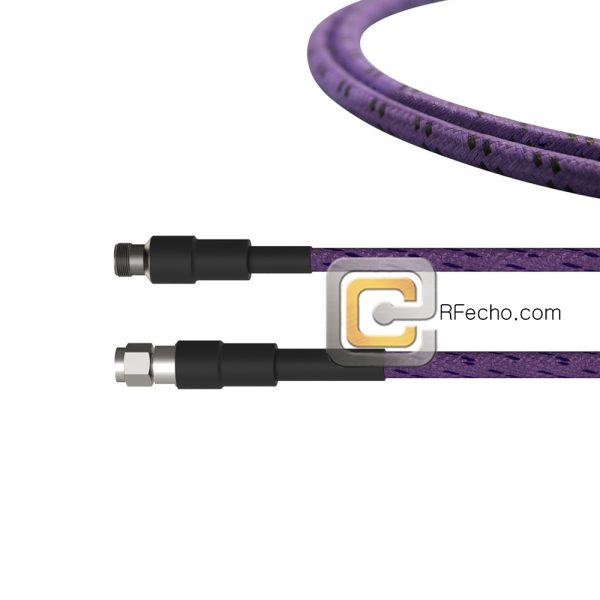

SMA Female to SMA Male, 26.5 GHz, Composite OM-195TC Coax and RoHS

RFecho Phase Stable Test Cables allow customers to make accurate repeatable measurements due to the cables phase and amplitude stability when flexed.

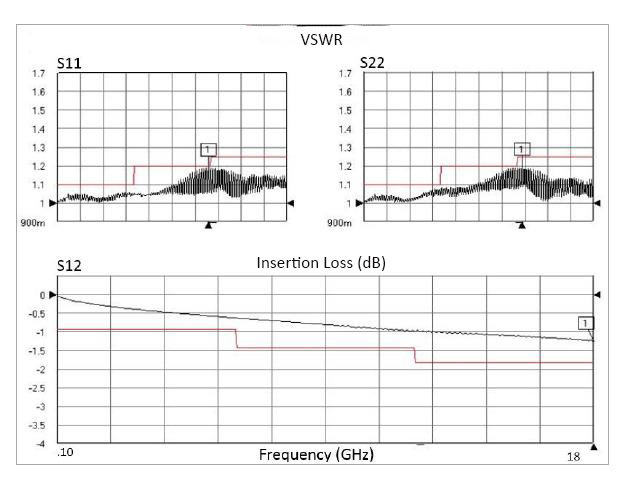

The OM-195TC test cables use a solid PTFE dielectric core to help prevent any change in diameter under flexure resulting in good insertion loss and low VSWR These cables are designed to exceed 5,000 mating cycles when handled with proper care.
This series of cables are an excellent choice for the laboratory or production environment when a more precise measurement is needed, especially when there is movement involved in the testing cycle.

SKU: F017-320S0-321S0-265-C Categories: E-Testing ECO, OM-195TC, RF Cables

Description

Additional information

Cable Type

OM-195TC

Cable Coax Type

Flexible

Cable Armour

Composite

Connector 1

SMA

Connector 1 Gender

Female

Connector 1 Body Style

Straight

Connector 1 Mounting Method

None

Connector 1 Connection Method

Standard

Connector 2

SMA

Connector 2 Gender

Male

Connector 2 Body Style

Straight

Connector 2 Mounting Method

None

Connector 2 Connection Method

Standard
