SMA male to N male · 18 GHz

F020-321S0-291S0-180-C

SKU: F020-321S0-291S0-180-C Categories: E-Testing ECO, OM-141, RF Cables
Add to Wishlist

Description

Technical specifications

18 GHzMaximum frequency
OM-141Flexible coaxial cable
Ø 4.14 mmBase cable jacket diameter
End A
SMA male, straight
End B
N male, straight
Armour
Composite
Assembly insertion loss
Confirm for required length and frequency
Base cable jacket
FEP
Base cable construction
PTFE, solid silver-plated copper conductor, double shield
Repeated bend radius, base cable
20.32 mm

Cable details

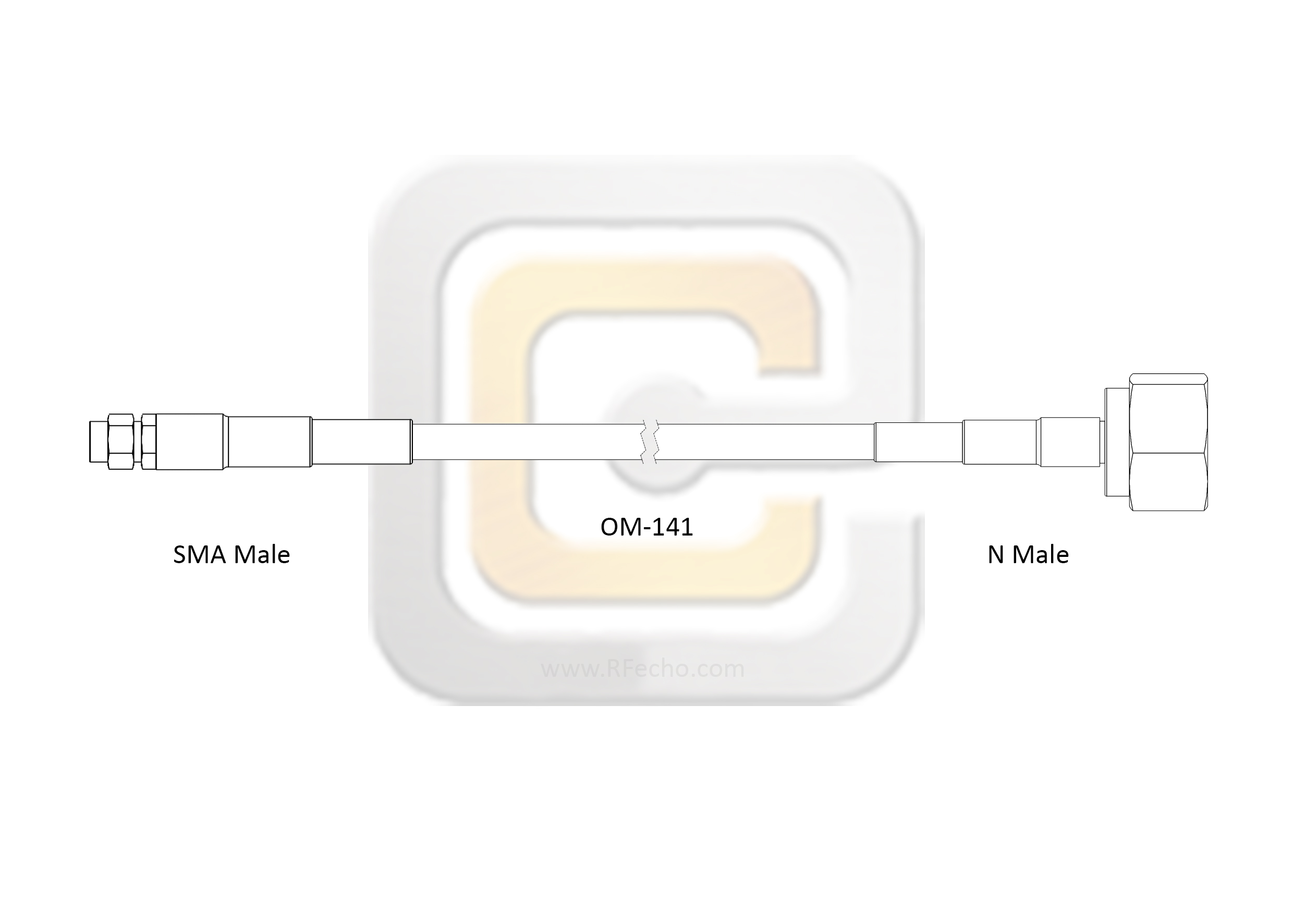

SMA male — OM-141 — N male

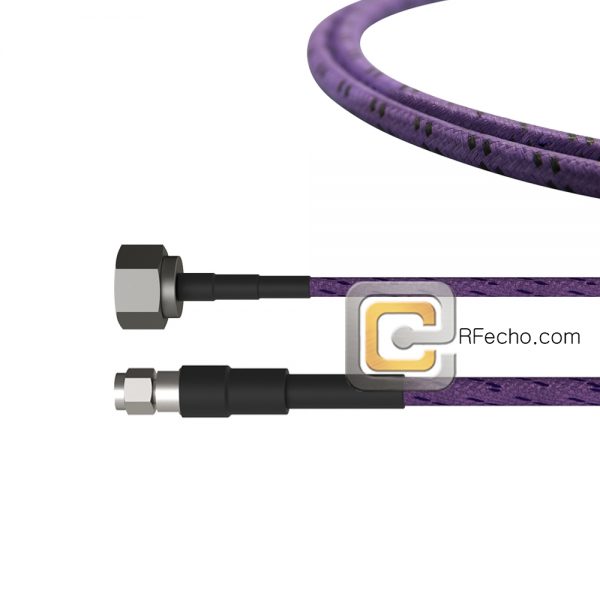

OM-141 armored cable routing
Cable routing · Cable family routing illustration.
SMA straight male connector close-up
SMA male · Straight connector.
N straight male connector close-up
N male · Straight connector.

Cable cutaway

OM-141 construction cutaway
Illustrative cable construction. Layer thicknesses are schematic.

Loss versus frequency

OM-141 loss versus frequency
Typical base cable attenuation. The assembly frequency rating is listed above. Total insertion loss depends on length, frequency and connectors.
