Flexible Testing — OM-195TC Armored RF Cable

om 160flex 3.5mm 3.5mm armored transparent wm.png Flexible Routing — OM-160FLEX Armored RF Cable
om 141 n n plain transparent wm.png Value — OM-141 RF Cable
0 out of 5
( There are no reviews yet. )

$125.02 – $553.67

E-Testing ECO

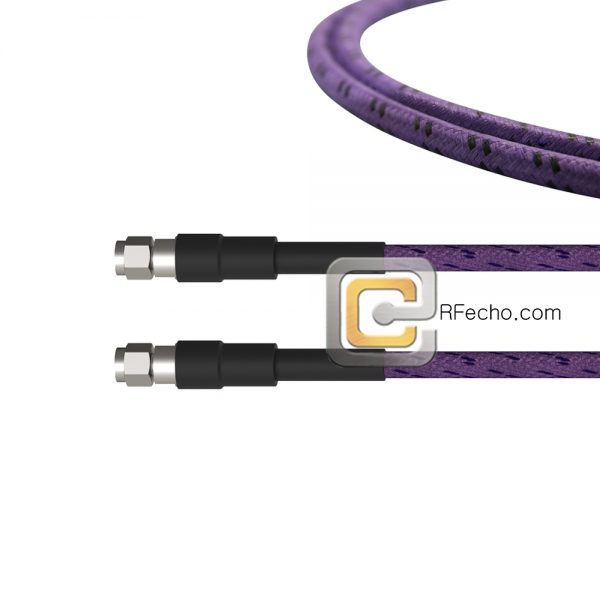

SMA male to SMA male · 26.5 GHz

F017-321S0-321S0-265-C

SKU: F017-321S0-321S0-265-C Categories: E-Testing ECO, OM-195TC, RF Cables
Add to Wishlist

Description

Technical specifications

26.5 GHzMaximum frequency
OM-195TCFlexible coaxial cable
Ø 4.95 mmBase cable jacket diameter
End A
SMA male, straight
End B
SMA male, straight
Armour
Composite
Assembly insertion loss
Confirm for required length and frequency
Base cable jacket
FEP
Base cable construction
PTFE, solid silver-plated copper conductor, triple shield
One-time bend radius, base cable
25.40 mm

Cable details

OM-195TC armoured cable bend detail
Armoured cable routing · Illustrative bend.
SMA straight male connector close-up
SMA male × 2

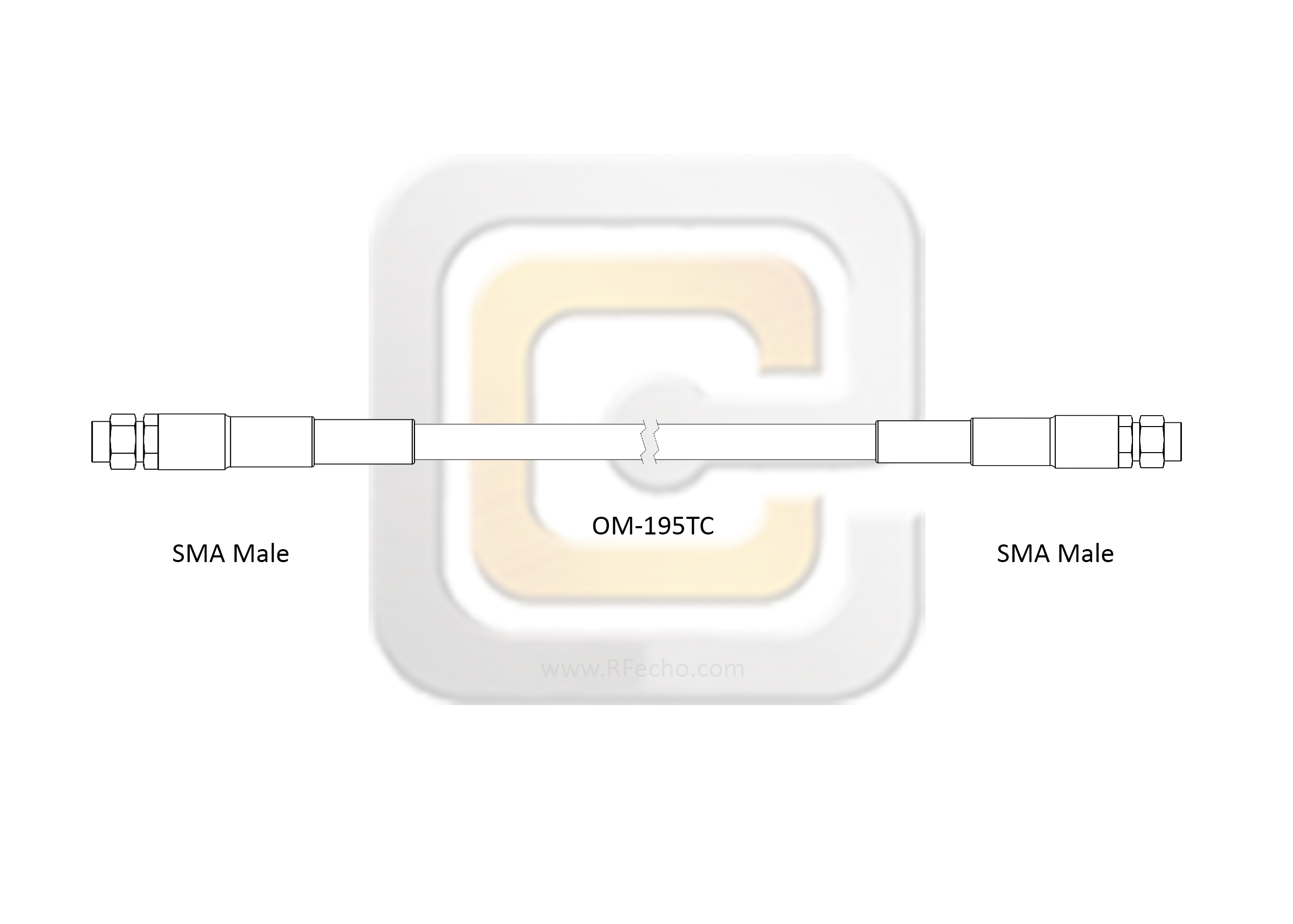

SMA male  —  OM-195TC  —  SMA male

Include your required cable length and operating frequency when requesting a quote.

Cable cutaway

OM-195TC base cable cutaway
Illustrative base cable construction. Layer thicknesses are schematic.

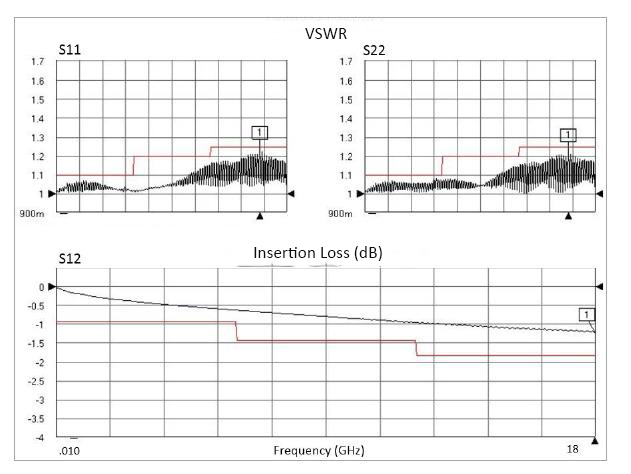

48 in reference assembly · maximum insertion loss

OM-195TC loss versus frequency
Frequency Loss
12 GHz 2.57 dB
18 GHz 3.33 dB

Reference values apply to the stated assembly length and include connector effects. Bend radii above apply to the base cable.
