SSMA 36 GHz, 0.012″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector

SSMA 36 GHz, 0.012″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector

This Model D570-P12-F02 is a Female Connector utilizes the basic PTFE dielectric interface and features low VSWR mode and less than -100 dB RF leakage. The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SSMA Connectors offers the frequency range from DC to 36 GHz. SSMA Connectors have 4 Hole 0.375″ Square mounting. This model of SSMA Connector provides the accept pin diameter of 0.012″ inches.

SKU: D570-P12-F02 Categories: Adapters and Connectors, RF Connector SSMA, RF Connectors

Description

SPEC

SSMA Connector

SSMA 36 GHz, 0.012″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector

D570-P12-F02

This Model D570-P12-F02 is a Female Connector utilizes the basic PTFE dielectric interface and features low VSWR mode and less than -100 dB RF leakage. The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SSMA Connectors offers the frequency range from DC to 36 GHz. SSMA Connectors have 4 Hole 0.375″ Square mounting. This model of SSMA Connector provides the accept pin diameter of 0.012″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

36

Flange (inch)

0.375″ Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.012″

Gender

Female

Features

Low VSWR

Free through 36 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

Outline

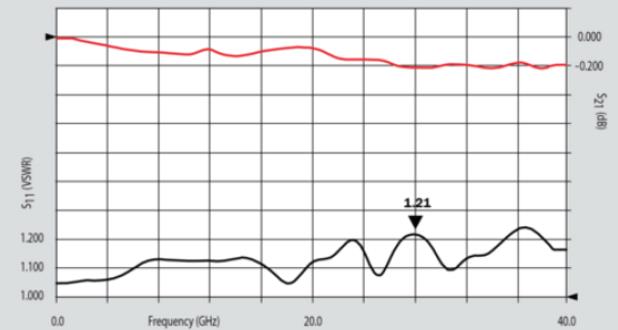

Plot

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

36

Flange (inch)

0.375" Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.012"

Gender

Female
