SSMA 36 GHz, 0.012″ Accept Pin Diameter, Thread-In Female Connector
This Model D570-P12-Y02 is a Female Connector utilizes the basic PTFE dielectric interface and features low VSWR mode and less than -100 dB RF leakage. The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.
SSMA Connectors offers the frequency range from DC to 36 GHz. SSMA Connectors have Thread-In mounting. This model of SSMA Connector provides the accept pin diameter of 0.012″ inches.
- Description
- Additional information
- Reviews (0)
Description
SSMA Connector |
|
SSMA 36 GHz, 0.012″ Accept Pin Diameter, Thread-In NA Mounting Flange Female Connector |
|
D570-P12-Y02 |
|
This Model D570-P12-Y02 is a Female Connector utilizes the basic PTFE dielectric interface and features low VSWR mode and less than -100 dB RF leakage. The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance. SSMA Connectors offers the frequency range from DC to 36 GHz. SSMA Connectors have Thread-In mounting. This model of SSMA Connector provides the accept pin diameter of 0.012″ inches. |
|
Property |
Value |
Min. Frequency (GHz) |
DC |
Max. Frequency (GHz) |
36 |
Flange (inch) |
NA |
Mounting |
Thread-In |

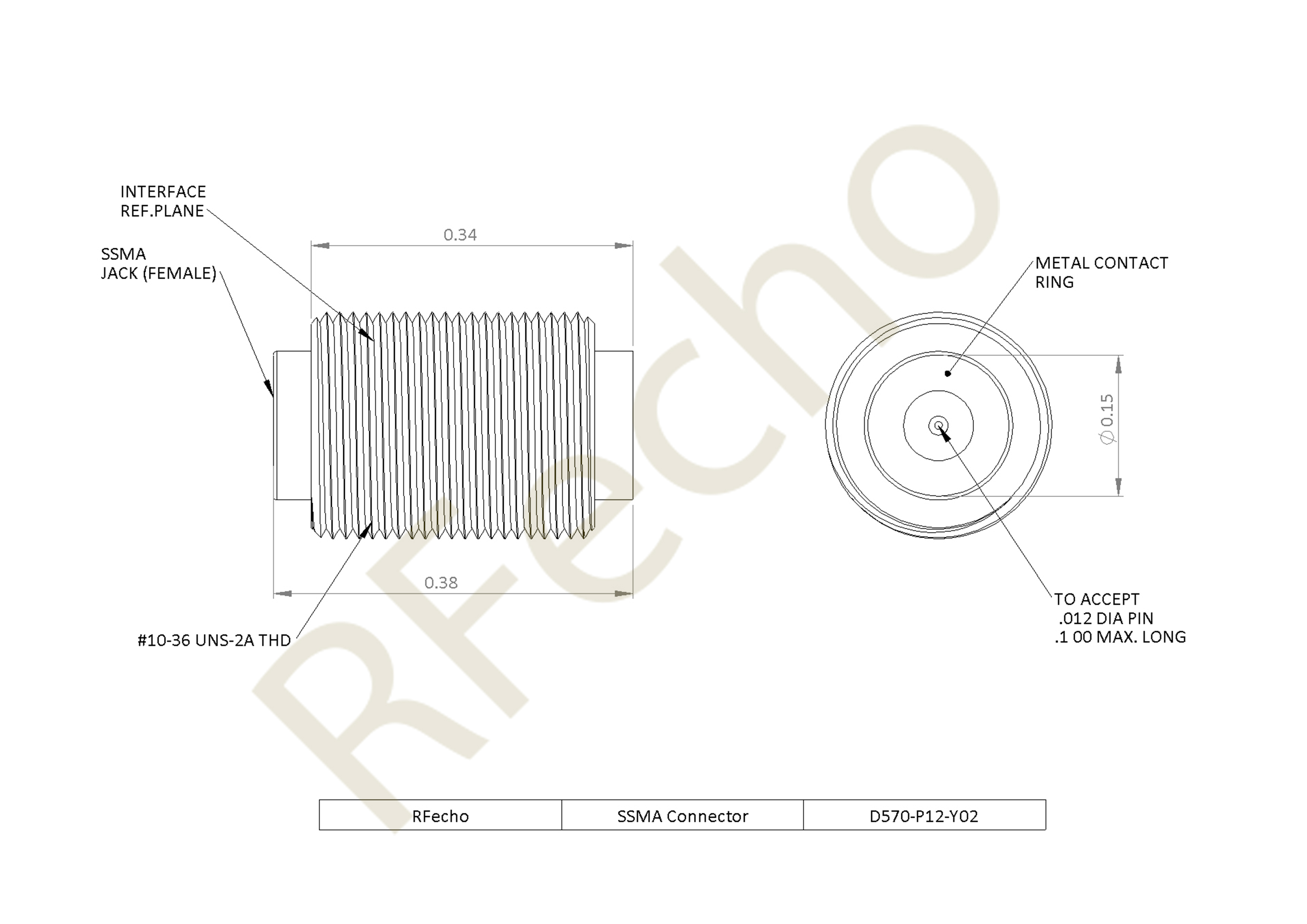

Accept Pin Diameter (inch) |
0.012″ |
Gender |
Female |
Features |
|

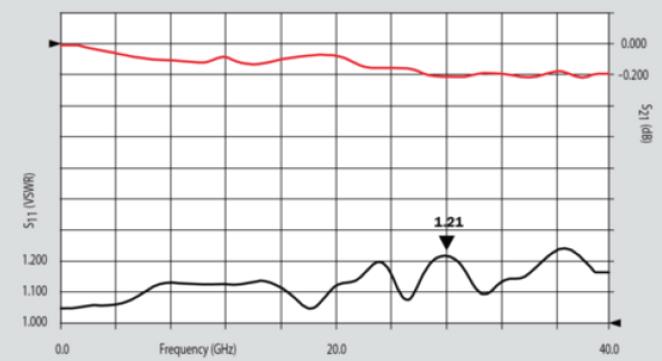

Low VSWR |
|
Free through 36 GHz |
|
Applications |
|
Telecom Communication |
|
Sub-assemblies |
|
Radio equipment and instruments |
|
Wireless Communication |
|
Test Labs |
|
Instrumentations |
Additional information
Min. Frequency (GHz) | DC |
---|---|
Max. Frequency (GHz) | 36 |
Flange (inch) | |
Mounting | |
Accept Pin Diameter (inch) | |
Gender |
