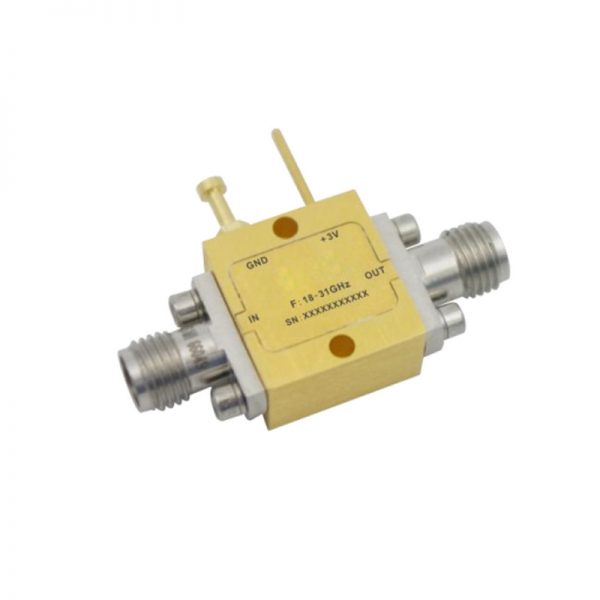

Ultra Wide Band Low Noise Amplifier From 16GHz to 33GHz With a Nominal 12dB Gain NF 2.8dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 16GHz to 33GHz With a Nominal 12dB Gain NF 2.8dB 2.92mm Connectors

• Gain: 12dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +3V @ 65mA
• 50 Ohm Matched

SKU: OLNA418003100A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 12dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +3V @ 65mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

082-OLNA418003100A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

16

Max. Pass Band Frequency (GHz)

33

Gain (dB)

12

NF (dB)

2.8

P1dB (dBm)

11

IP3 (dBm)

21

VSWR

1.8

"Voltage (VDC)"

3

"Current (mA)"

65

Connection Type

2.92mm
