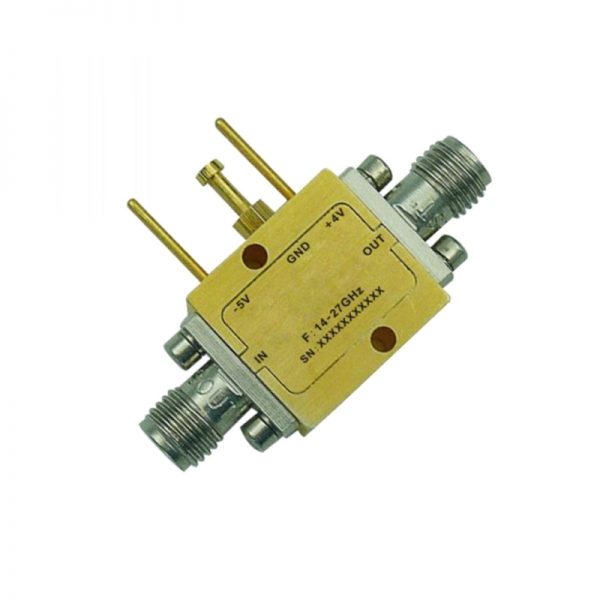

Ultra Wide Band Low Noise Amplifier From 14GHz to 27GHz With a Nominal 18dB Gain NF 2dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 14GHz to 27GHz With a Nominal 18dB Gain NF 2dB 2.92mm Connectors

0 out of 5

• Gain: 20dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +15dB Typical
• Supply Voltage: +4V &-5V
• 50 Ohm Matched

SKU: OLNA314002700A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 20dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +15dB Typical
• Supply Voltage: +4V &-5V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

074-OLNA314002700A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

14

Max. Pass Band Frequency (GHz)

27

Gain (dB)

18

NF (dB)

2

P1dB (dBm)

16

IP3 (dBm)

28

VSWR

1.6

"Voltage (VDC)"

4

"Current (mA)"

90

Connection Type

2.92mm
