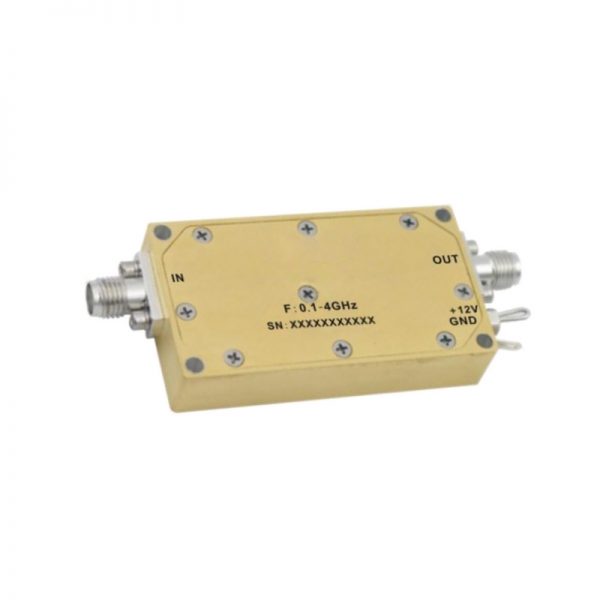

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 4GHz With a Nominal 34dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 4GHz With a Nominal 34dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 34 dBTypical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 270mA
• 50 Ohm Matched

SKU: OLNA200100400B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 34 dBTypical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 270mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

049-OLNA200100400B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

4

Gain (dB)

34

NF (dB)

2.5

P1dB (dBm)

22

IP3 (dBm)

35

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

270

Connection Type

SMA
