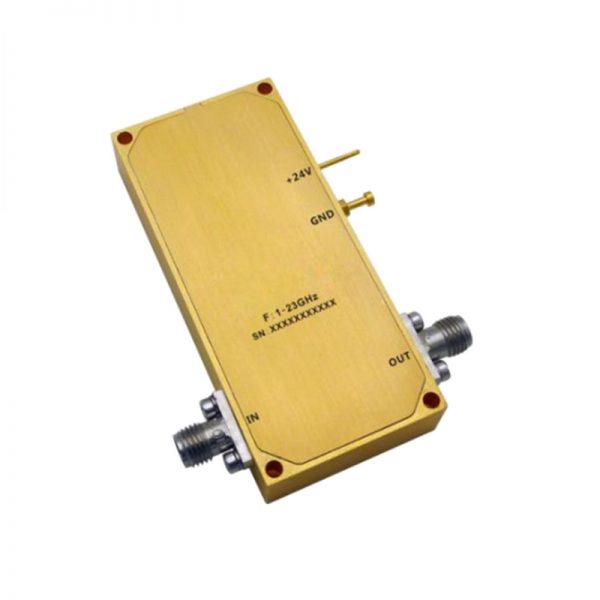

Ultra Wide Band Low Noise Amplifier From 1GHz to 23GHz With a Nominal 27dB Gain NF 5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 23GHz With a Nominal 27dB Gain NF 5dB SMA Connectors

0 out of 5

• Gain: 29dB Typical
• Noise Figure: 5.0dB Typical
• P1dB Output Power: +20dBm
• Supply Voltage: +24V @ 250mA
• 50 Ohm Matched

SKU: OLNA301002300A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 29dB Typical
• Noise Figure: 5.0dB Typical
• P1dB Output Power: +20dBm
• Supply Voltage: +24V @ 250mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

062-OLNA301002300A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

23

Gain (dB)

27

NF (dB)

5

P1dB (dBm)

20

IP3 (dBm)

27

VSWR

1.8

"Voltage (VDC)"

24

"Current (mA)"

250

Connection Type

SMA
