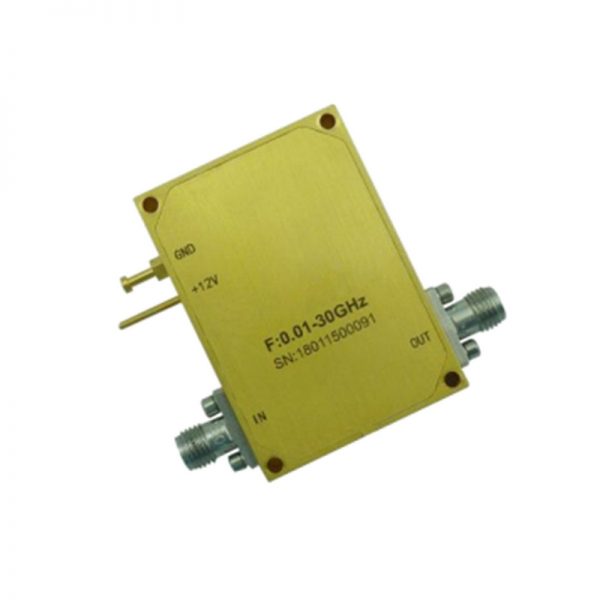

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 30GHz With a Nominal 41dB Gain NF 3.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 30GHz With a Nominal 41dB Gain NF 3.5dB SMA Connectors

• Gain: 41dB Typical
• Noise Figure: 3.5dB Typical
• P1dB Output Power: +28dBm Typical
• PSAT Output Power: 30dBm
• Supply Voltage: +12V @ 525mA
• 50 Ohm Matched

SKU: OLNA500013000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 41dB Typical
• Noise Figure: 3.5dB Typical
• P1dB Output Power: +28dBm Typical
• PSAT Output Power: 30dBm
• Supply Voltage: +12V @ 525mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

081-OLNA500013000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

30

Gain (dB)

41

NF (dB)

3.5

P1dB (dBm)

28

IP3 (dBm)

33

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

525

Connection Type

SMA
