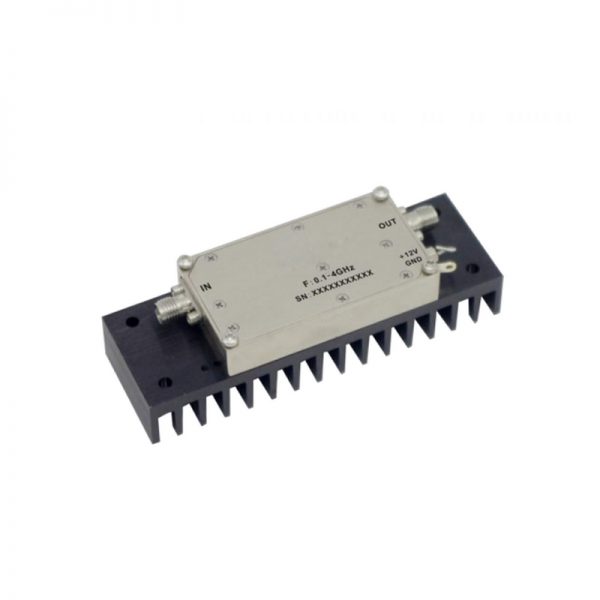

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 4GHz With a Nominal 38dB Gain NF 2.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 4GHz With a Nominal 38dB Gain NF 2.2dB SMA Connectors

0 out of 5

• Gain: 38 dB Typical
• Noise Figure: 2.2 dB Typical
• P1dB Output Power: +25dBm Typical
• Supply Voltage: 12 V

SKU: OLNA200100400C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 38 dB Typical
• Noise Figure: 2.2 dB Typical
• P1dB Output Power: +25dBm Typical
• Supply Voltage: 12 V



Data Sheet ( Download Datasheet PDF )

066-OLNA200100400C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

4

Gain (dB)

38

NF (dB)

2.2

P1dB (dBm)

24

IP3 (dBm)

33

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

320

Connection Type

SMA
