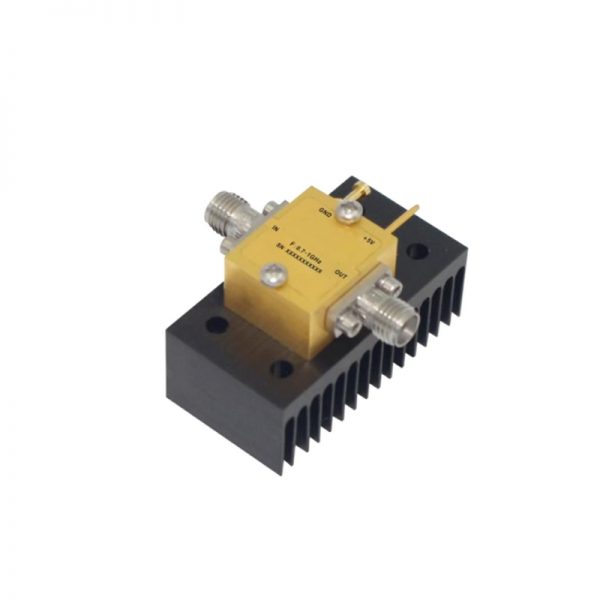

Ultra Wide Band Low Noise Amplifier From 0.7GHz to 1GHz With a Nominal 13.5dB Gain NF 0.7dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.7GHz to 1GHz With a Nominal 13.5dB Gain NF 0.7dB SMA Connectors

0 out of 5

• Gain: 14.5dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +5V @ 65mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.75” x 0.39”

SKU: OLNA100700100A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 14.5dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +5V @ 65mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.75” x 0.39”



Data Sheet ( Download Datasheet PDF )

088-OLNA100700100A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.7

Max. Pass Band Frequency (GHz)

1

Gain (dB)

13.5

NF (dB)

0.7

P1dB (dBm)

21

IP3 (dBm)

36

VSWR

1.4

"Voltage (VDC)"

5

"Current (mA)"

65

Connection Type

SMA
