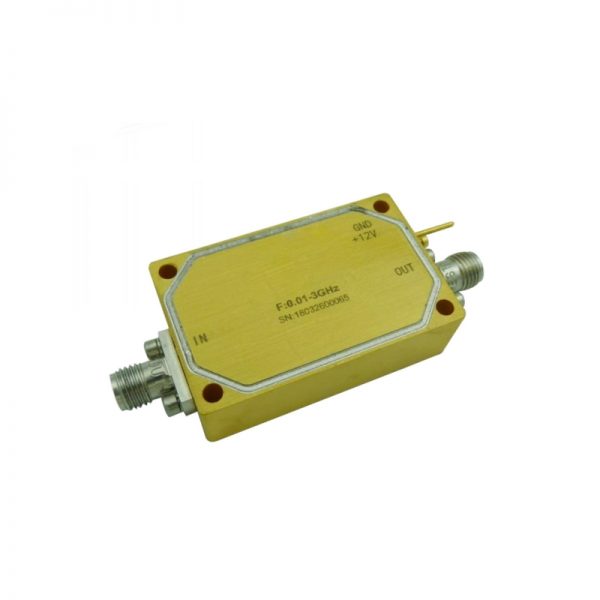

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 3GHz With a Nominal 36dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 3GHz With a Nominal 36dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 36dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +12V @220mA
• 50 Ohm Matched Input / Output

SKU: OLNA300010300C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 36dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +12V @220mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

114-OLNA300010300C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

3

Gain (dB)

36

NF (dB)

2.5

P1dB (dBm)

21

IP3 (dBm)

36

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

220

Connection Type

SMA
