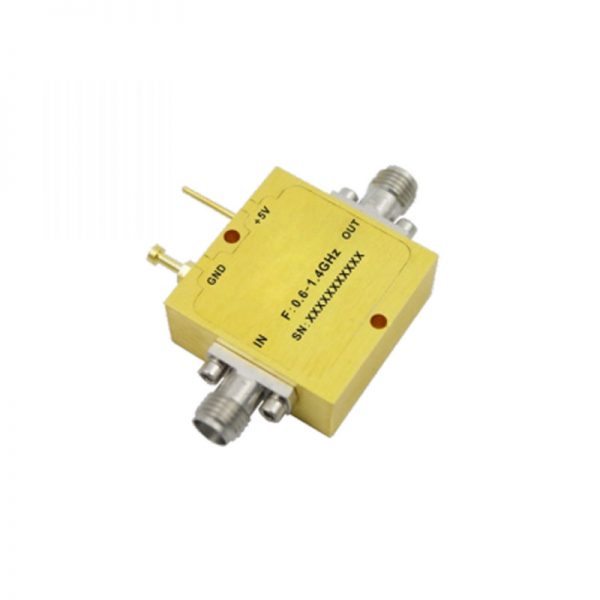

Ultra Wide Band Low Noise Amplifier From 0.6GHz to 1.4GHz With a Nominal 29dB Gain NF 0.9dB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 0.6GHz to 1.4GHz With a Nominal 29dB Gain NF 0.9dB SMA-Female Connectors

0 out of 5

• Gain: 32dB Typical
• Noise Figure: 0.9dB Typical
• P1dB Output Power: +21.5dBm Typical
• Supply Voltage: +5V @ 260mA
• 50 Ohm Matched Input / Output

SKU: OLNA100600140A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32dB Typical
• Noise Figure: 0.9dB Typical
• P1dB Output Power: +21.5dBm Typical
• Supply Voltage: +5V @ 260mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

090-OLNA100600140A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.6

Max. Pass Band Frequency (GHz)

1.4

Gain (dB)

29

NF (dB)

0.9

P1dB (dBm)

21.5

IP3 (dBm)

37

VSWR

1.8

"Voltage (VDC)"

5

"Current (mA)"

260

Connection Type

SMA-Female
