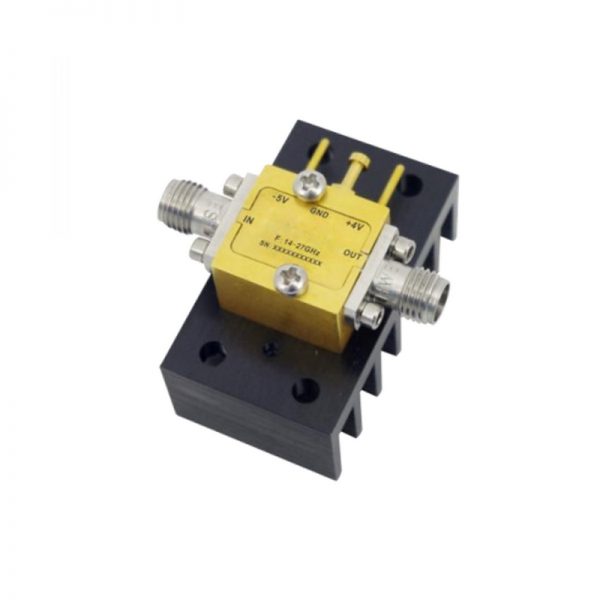

Ultra Wide Band Low Noise Amplifier From 14GHz to 27GHz With a Nominal 20dB Gain NF 2dB 2.92-Female Connectors

Ultra Wide Band Low Noise Amplifier From 14GHz to 27GHz With a Nominal 20dB Gain NF 2dB 2.92-Female Connectors

0 out of 5

• Gain: 20dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +15dB m Typical
• Supply Voltage: +4V @ 90mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.41”

SKU: OLNA214002700B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 20dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +15dB m Typical
• Supply Voltage: +4V @ 90mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.41”



Data Sheet ( Download Datasheet PDF )

075-OLNA214002700B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

14

Max. Pass Band Frequency (GHz)

27

Gain (dB)

20

NF (dB)

2

P1dB (dBm)

15

IP3 (dBm)

26

VSWR

1.5

"Voltage (VDC)"

4

"Current (mA)"

90

Connection Type

2.92-Female
