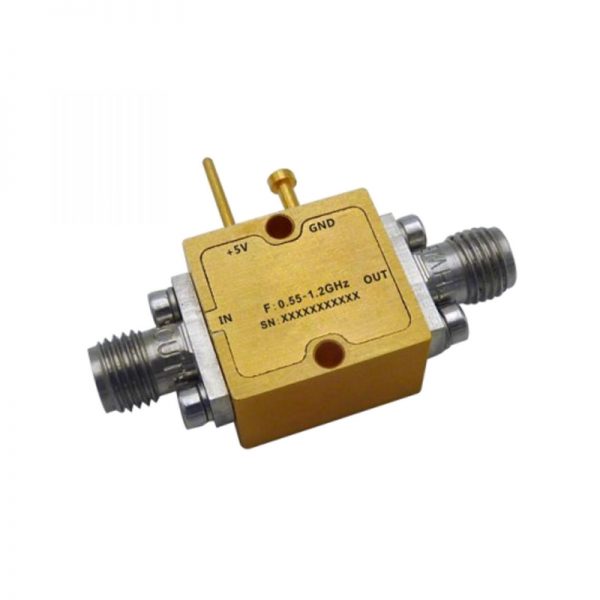

Ultra Wide Band Low Noise Amplifier From 0.55GHz to 1.2GHz With a Nominal 16.5dB Gain NF 0.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.55GHz to 1.2GHz With a Nominal 16.5dB Gain NF 0.8dB SMA Connectors

0 out of 5

• Gain: 16dB Typical
• Noise Figure: 0.5dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +3v &+5V

SKU: OLNA100550120B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 16dB Typical
• Noise Figure: 0.5dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +3v &+5V



Data Sheet ( Download Datasheet PDF )

089-OLNA100550120B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.55

Max. Pass Band Frequency (GHz)

1.2

Gain (dB)

16.5

NF (dB)

0.8

P1dB (dBm)

20

IP3 (dBm)

37

VSWR

1.5

"Voltage (VDC)"

5

"Current (mA)"

90

Connection Type

SMA
