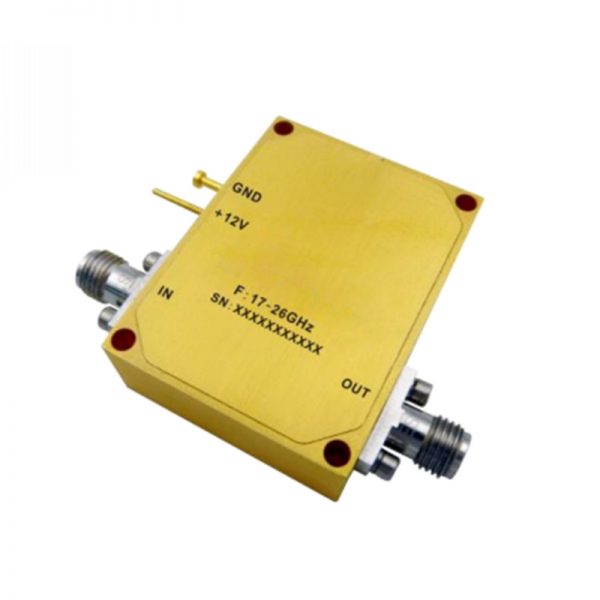

Ultra Wide Band Low Noise Amplifier From 17GHz to 26GHz With a Nominal 28dB Gain NF 2.4dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 17GHz to 26GHz With a Nominal 28dB Gain NF 2.4dB SMA Connectors

0 out of 5

• Gain: 28dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +12V @ 160mA
• 50 Ohm Matched

SKU: OLNA417002600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 28dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +12V @ 160mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

065-OLNA417002600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

17

Max. Pass Band Frequency (GHz)

26

Gain (dB)

28

NF (dB)

2.4

P1dB (dBm)

15

IP3 (dBm)

22

VSWR

1.7

"Voltage (VDC)"

15

"Current (mA)"

65

Connection Type

SMA
