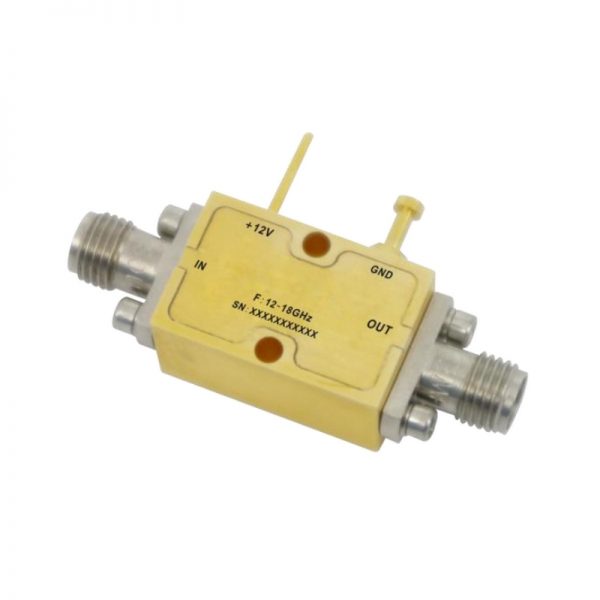

Ultra Wide Band Low Noise Amplifier From 12GHz to 18GHz With a Nominal 31dB Gain NF 2.3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 12GHz to 18GHz With a Nominal 31dB Gain NF 2.3dB SMA Connectors

0 out of 5

• Gain: 31dBtypical
• Noise Figure: 2.0dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V

SKU: OLNA212001800B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 31dBtypical
• Noise Figure: 2.0dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

041-OLNA212001800B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

12

Max. Pass Band Frequency (GHz)

18

Gain (dB)

31

NF (dB)

2.3

P1dB (dBm)

19.5

IP3 (dBm)

26

VSWR

1.7

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
