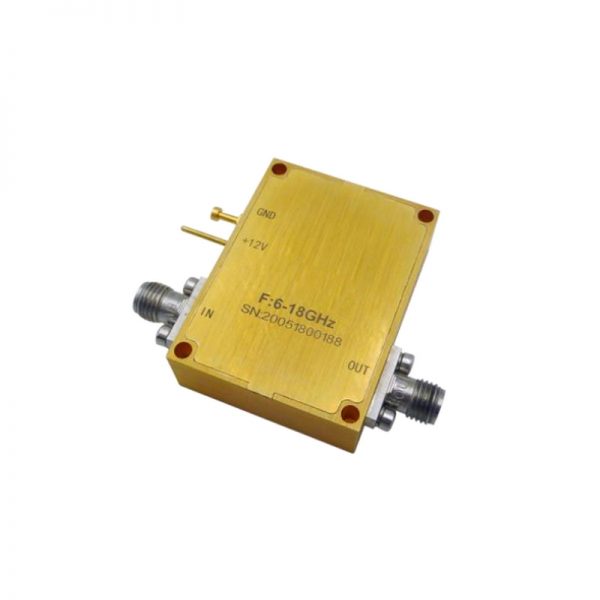

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 43dB Gain NF 2.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 43dB Gain NF 2.8dB SMA Connectors

0 out of 5

• Gain:43dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V

SKU: OLNA306001800C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:43dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

025-OLNA306001800C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

18

Gain (dB)

43

NF (dB)

2.8

P1dB (dBm)

22

IP3 (dBm)

31

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

250

Connection Type

SMA
