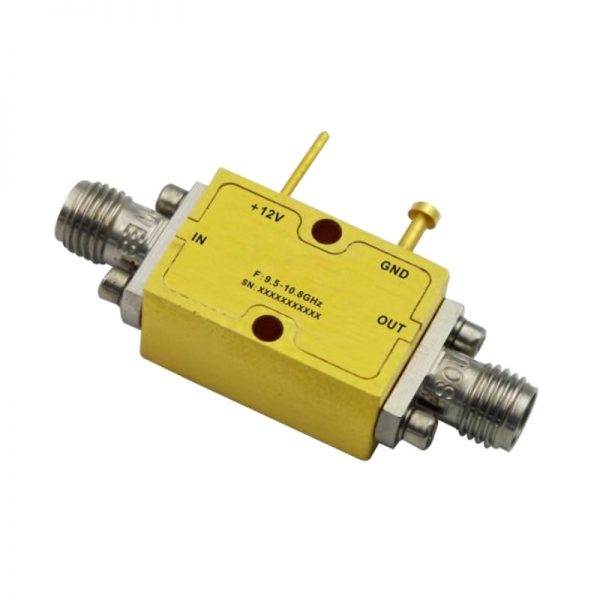

Ultra Wide Band Low Noise Amplifier From 9.5GHz to 10.8GHz With a Nominal 36dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 9.5GHz to 10.8GHz With a Nominal 36dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 36dBtypical
• Noise Figure: 2.0dB typical
• High P1dB: +15dBmtypical
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA209501080A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 36dBtypical
• Noise Figure: 2.0dB typical
• High P1dB: +15dBmtypical
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

005-OLNA209501080A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

9.5

Max. Pass Band Frequency (GHz)

10.8

Gain (dB)

36

NF (dB)

2

P1dB (dBm)

15

IP3 (dBm)

25

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

180

Connection Type

SMA
