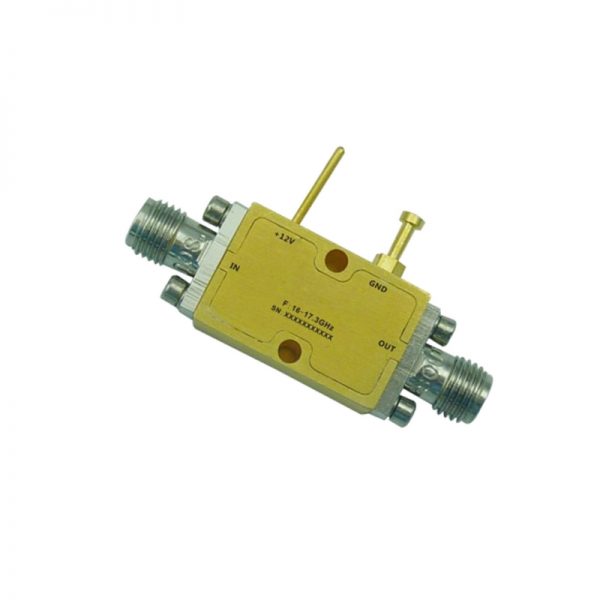

Ultra Wide Band Low Noise Amplifier From 16GHz to 17.3GHz With a Nominal 31dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 16GHz to 17.3GHz With a Nominal 31dB Gain NF 1.8dB SMA Connectors

• Gain: 32dBtypical
• Noise Figure: 1.8dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V @ 200mA
50 Ohm Matched

SKU: OLNA216001730A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32dBtypical
• Noise Figure: 1.8dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V @ 200mA
50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

021-OLNA216001730A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

16

Max. Pass Band Frequency (GHz)

17.3

Gain (dB)

31

NF (dB)

1.8

P1dB (dBm)

19

IP3 (dBm)

23

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
