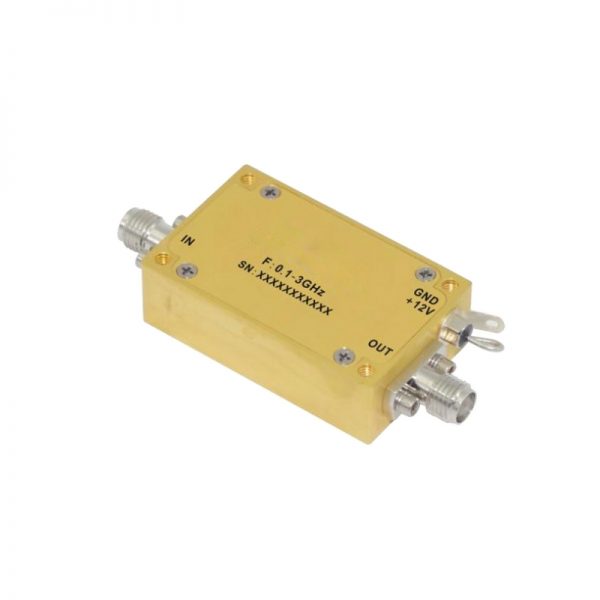

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 3GHz With a Nominal 35dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 3GHz With a Nominal 35dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 35dB Typical
• Noise Figure: 1.7dB Typical
• P1dB Output Power: +20dBmfull band
• Supply Voltage: +12V @ 220mA
• 50 Ohm Matched Input / Output
• Size:1.58” 0.99” x0.47”

SKU: OLNA200100300E Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 35dB Typical
• Noise Figure: 1.7dB Typical
• P1dB Output Power: +20dBmfull band
• Supply Voltage: +12V @ 220mA
• 50 Ohm Matched Input / Output
• Size:1.58” 0.99” x0.47”



Data Sheet ( Download Datasheet PDF )

046-OLNA200100300E



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

3

Gain (dB)

35

NF (dB)

2.5

P1dB (dBm)

20

IP3 (dBm)

33

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

220

Connection Type

SMA
