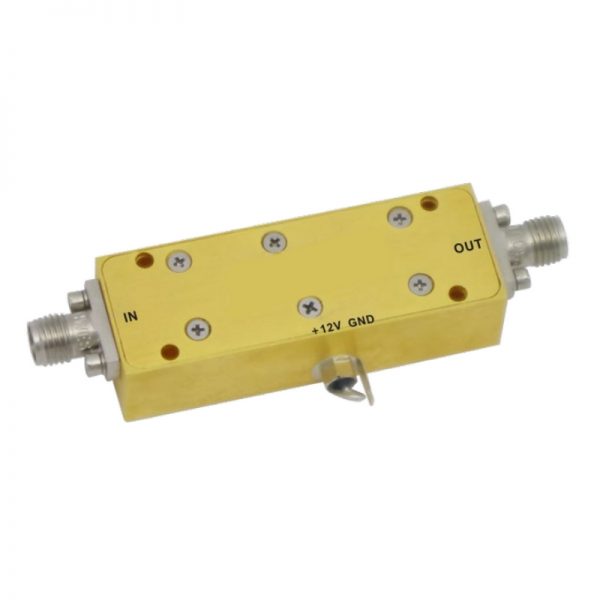

Low Noise Amplifier From 0.01GHz to 10GHz With a Nominal 27dB Gain NF 2.8dB

Low Noise Amplifier From 0.01GHz to 10GHz With a Nominal 27dB Gain NF 2.8dB

0 out of 5

• Gain: 28dBtypical
• Noise Figure:2.5dB typical
• High P1dB: +15dBmtypical
• Supply Voltage: +12V

SKU: OLNA200011000B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 28dBtypical
• Noise Figure:2.5dB typical
• High P1dB: +15dBmtypical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

001-OLNA200011000B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

10

Gain (dB)

27

NF (dB)

2.8

P1dB (dBm)

14

IP3 (dBm)

25

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

110

Connection Type

SMA
